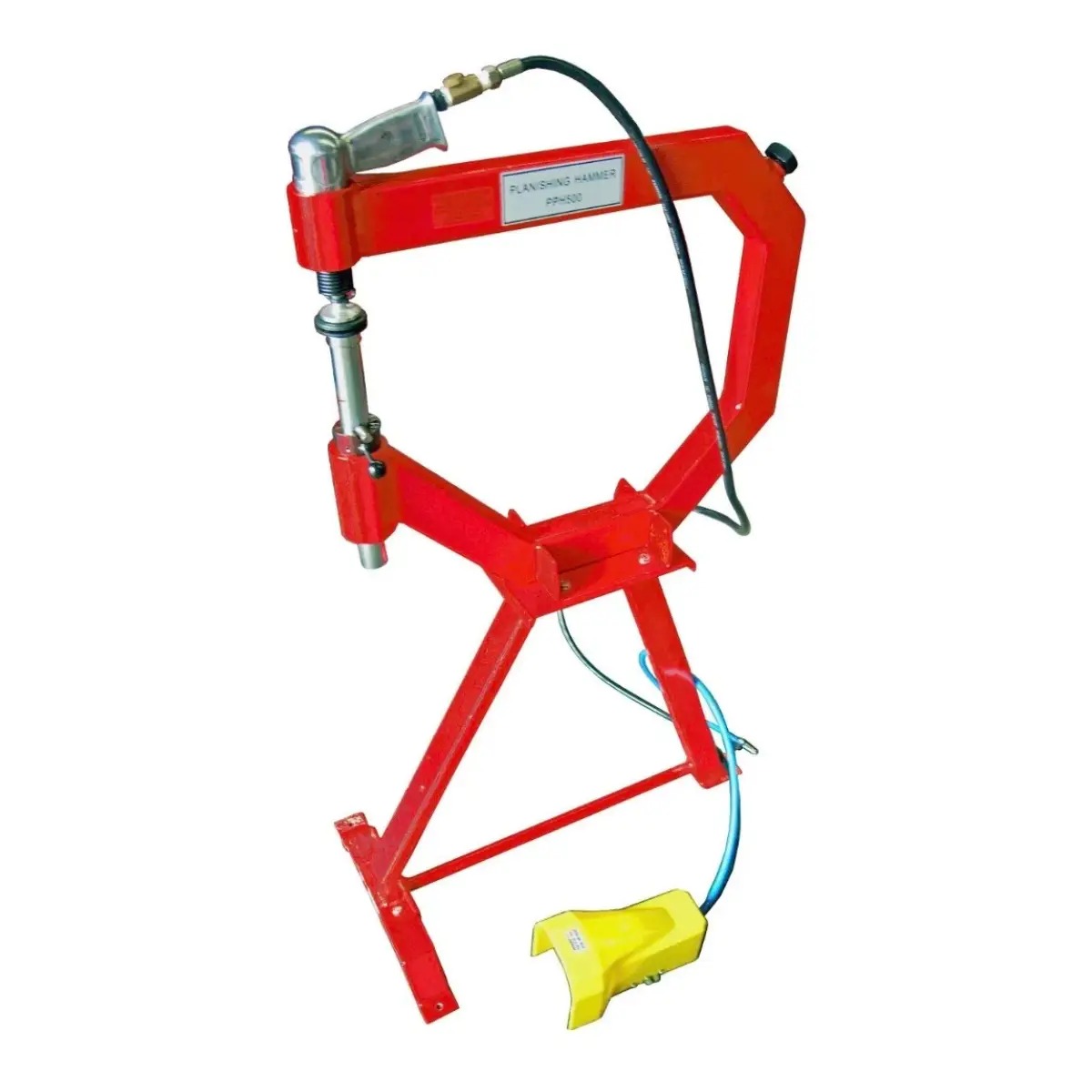

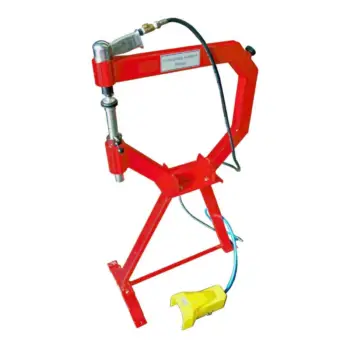

Reduce the time you spend working on smoothing a panel, making domed or custom parts with this pneumatic hammer. It will do a better job and is much faster than using a hammer and dolly by hand. Pneumatic planishing hammers are used for shaping sheet metal by hammering against a shaped surface.
Needs 12cfm at normal airline pressure giving about 875 to 1350 blows per minute.

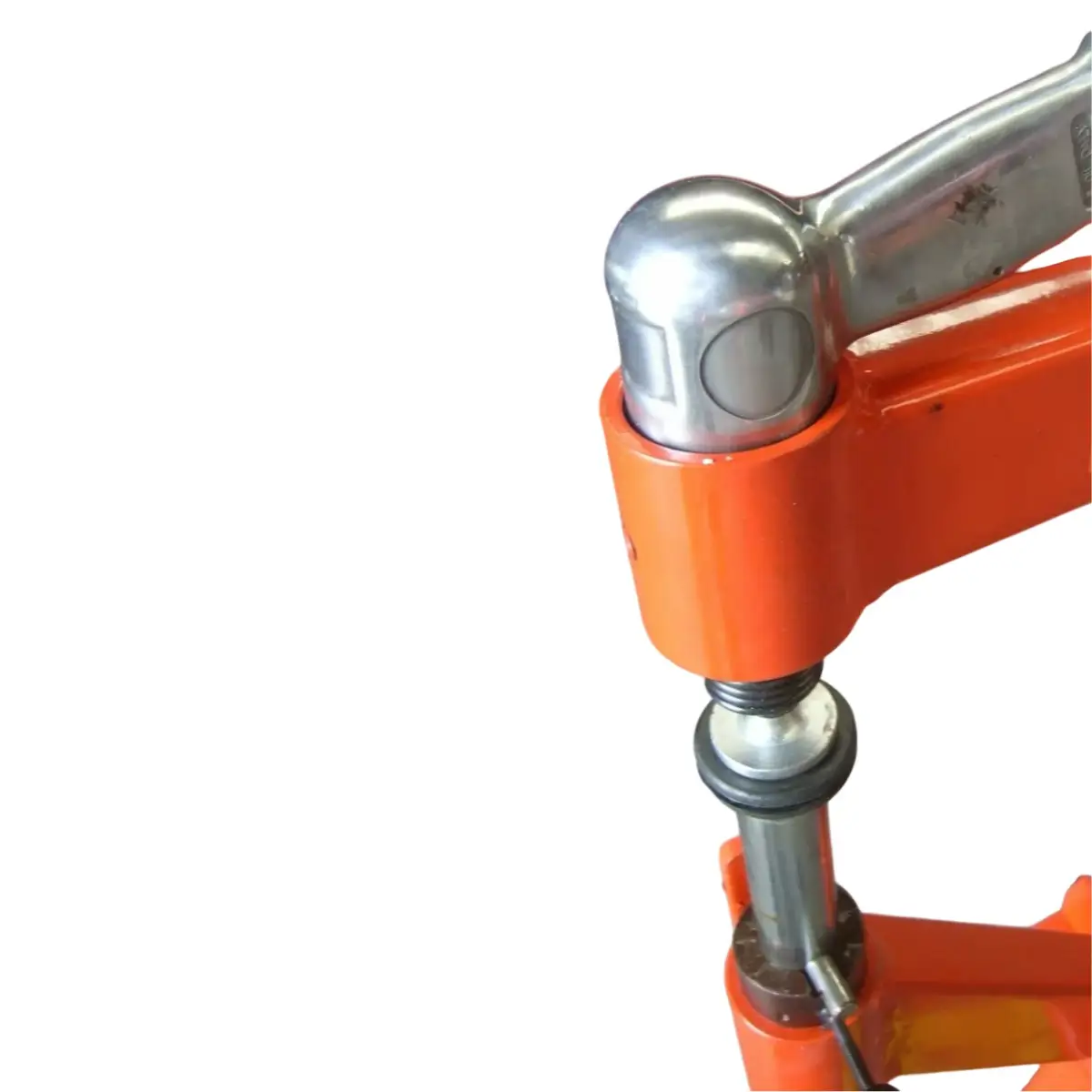

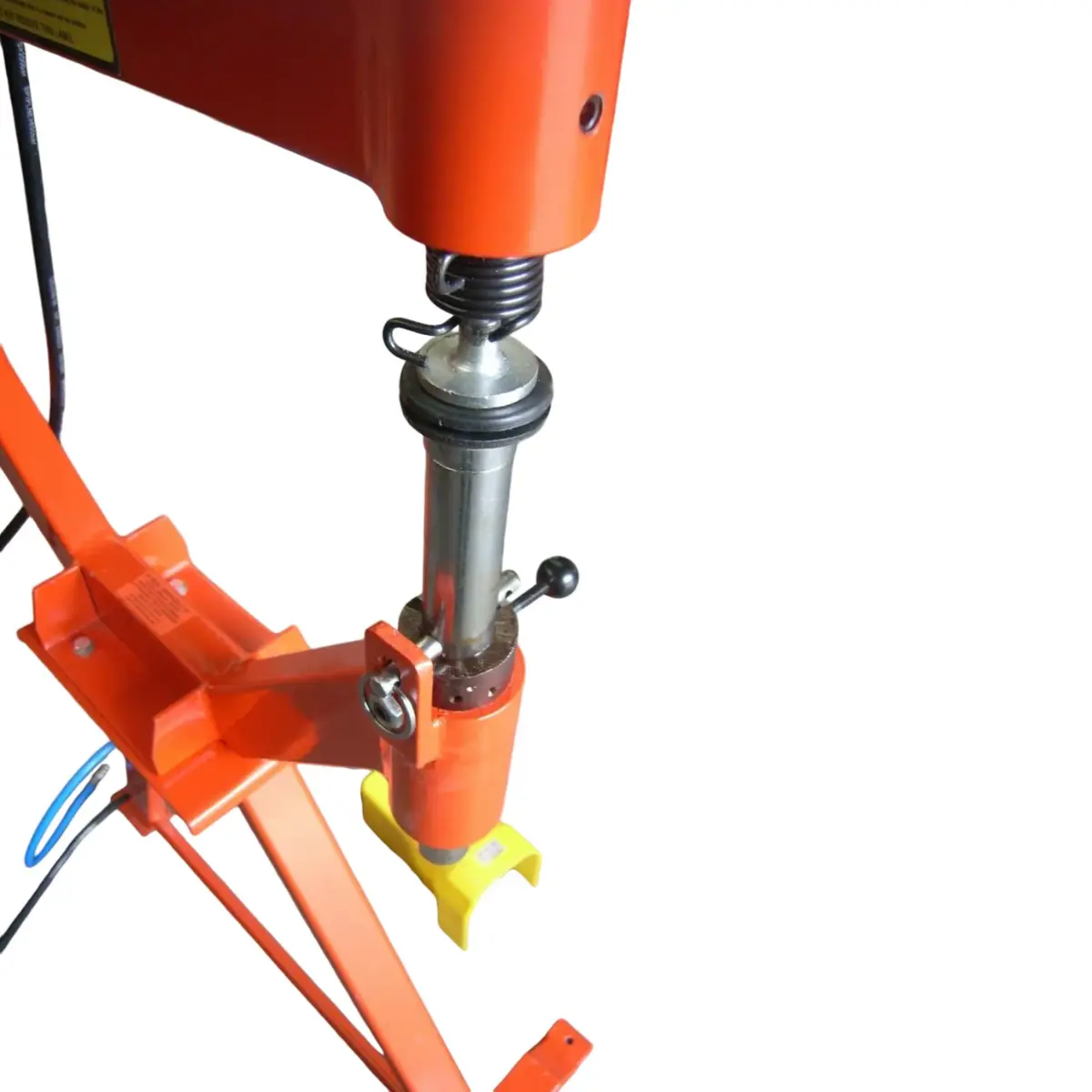

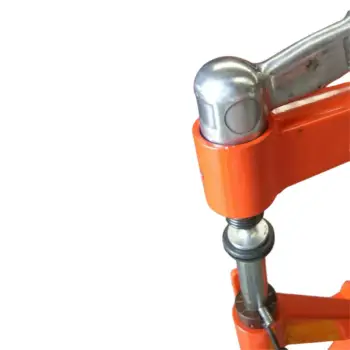

498mm Throat (19″). Stainless Steel Main Shaft and Hardened Steel Hammer Head.
– foot pedal
– 1 hammer head
– 3 Dies (32 mm diameter, 1″, 2″ and 3″ radius)
– Throat 498mm (19″)
– Max Thickness: 1.2mm
– Head Opening: 100mm
– Air requirement: 50-100 PSI
– Air Consumption: 4CFM
– 710 mm length, 400 mm width, 1200 mm height.
– Weight 26 kilos.
Planishing is a process used in auto body repair and sheet metal craft work such as medieval armour production.
