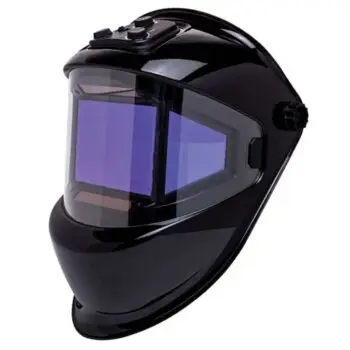

The Eastwood Panoramic Welding Helmet features a true 180 degree viewing area with True Color Technology. It allows a realistic color perception, bringing color to the world of welding.

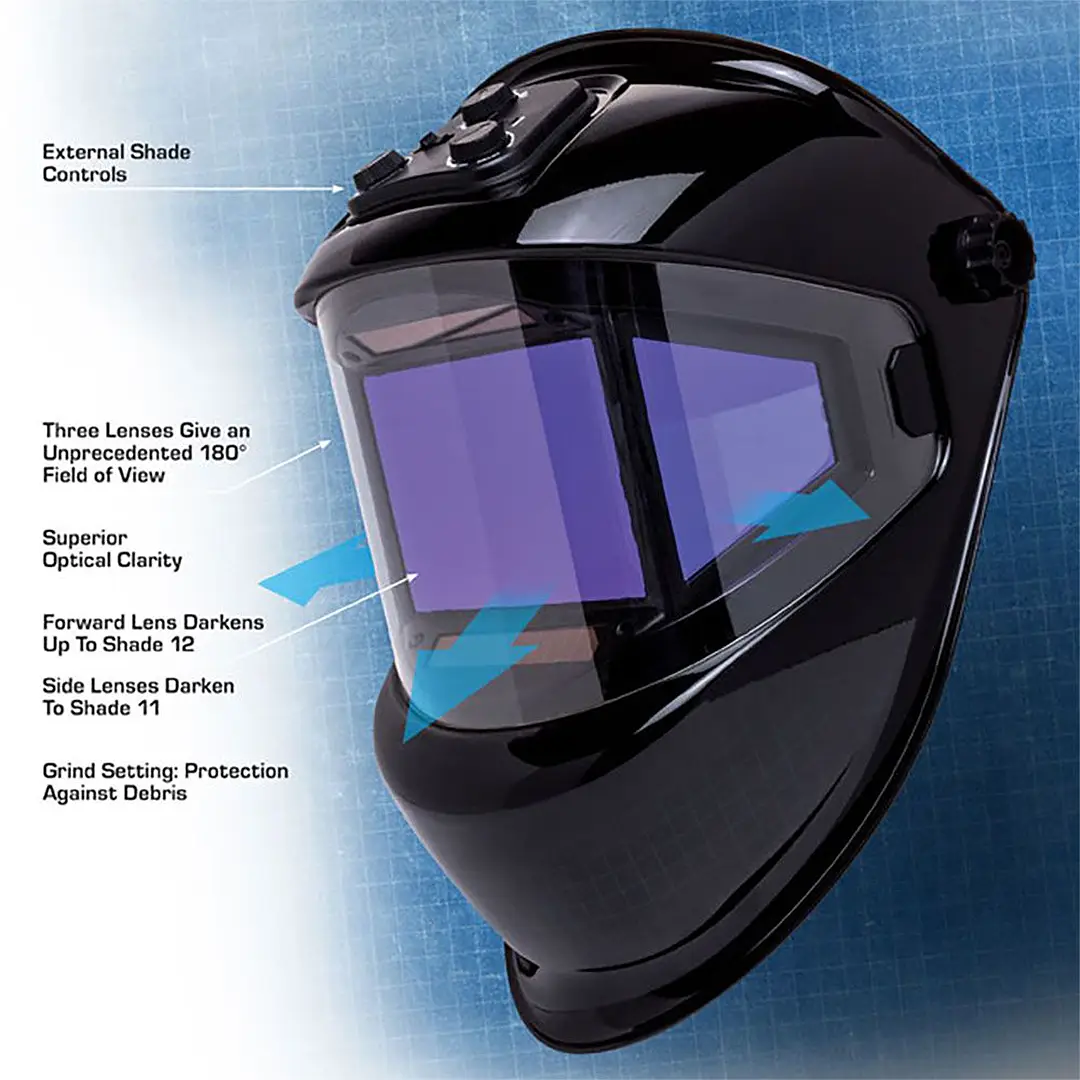

- Extra large viewing area
- True Color Technology allows a color realistic perception
- Optical Clarity 1/1/1/2
- Truly auto dimming across all three filters
- Main viewing area can be dimmed from shade 3 to 12
- Side filters are auto dimmed to shade 11
- Lens auto-darkens in 1/10,000th of a second
- 4 Independent ARC Sensors with adjustable sensitivity and delay controls
- Extended throat guard for protection
- Grind Mode
- CE ANSI and RoHs certified

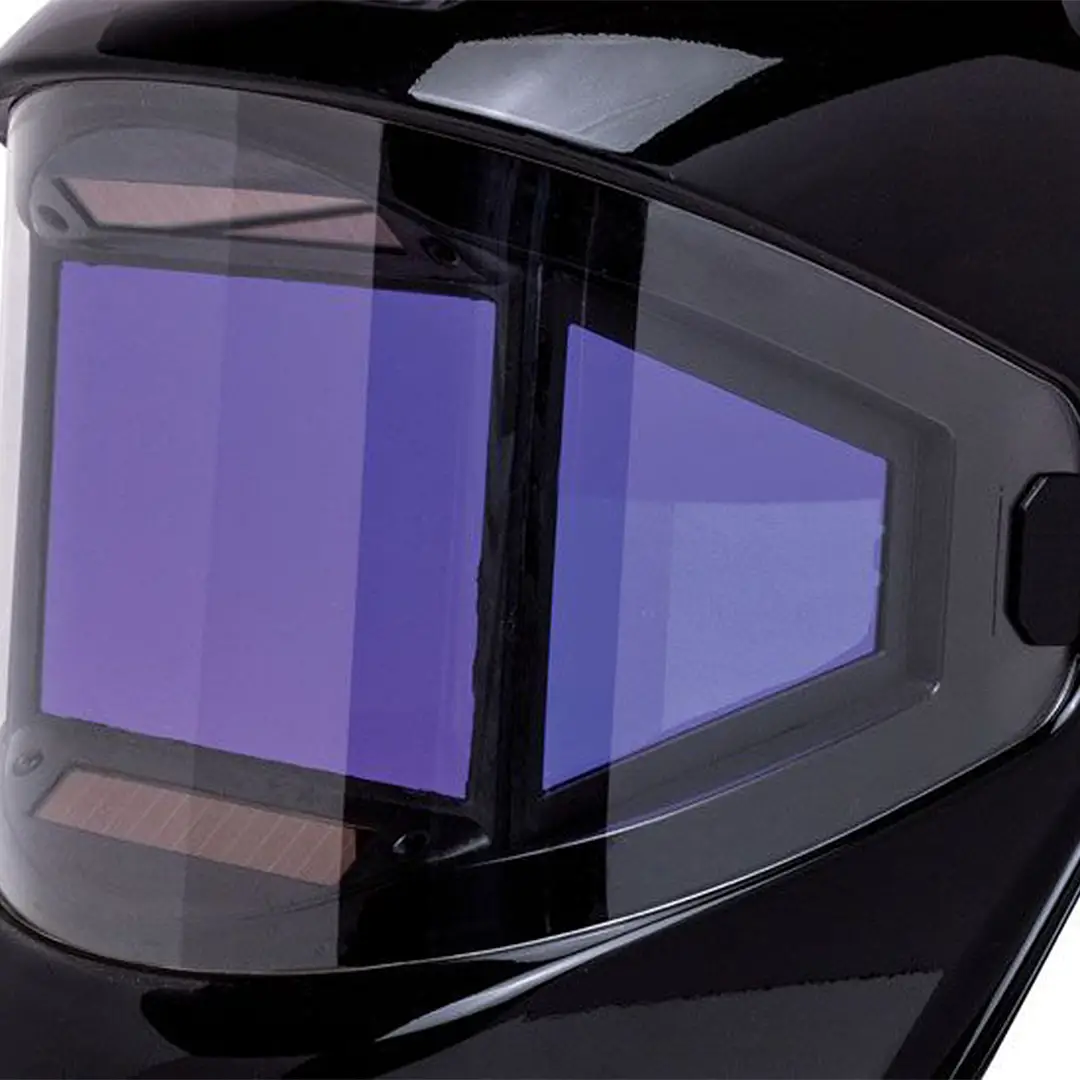

True Color Technology
The True Color Technology allows a realistic color perception so you have a much clearer view of what you are welding.

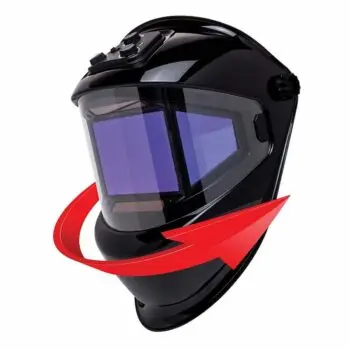

180 Degree Viewing
Specifically designed to provide maximum eye and face protection from harmful UV and IR radiation emitted when welding, in a lightweight, comfortable housing. The full 180° view provides additional visibility to the sides for added safety and convenience. Auto-Darkening powered by solar cells and lithium-nickel manganese cobalt oxide (Li-Mn) batteries provide long, reliable life. Meets ANSI Z-87.1 safety standards.

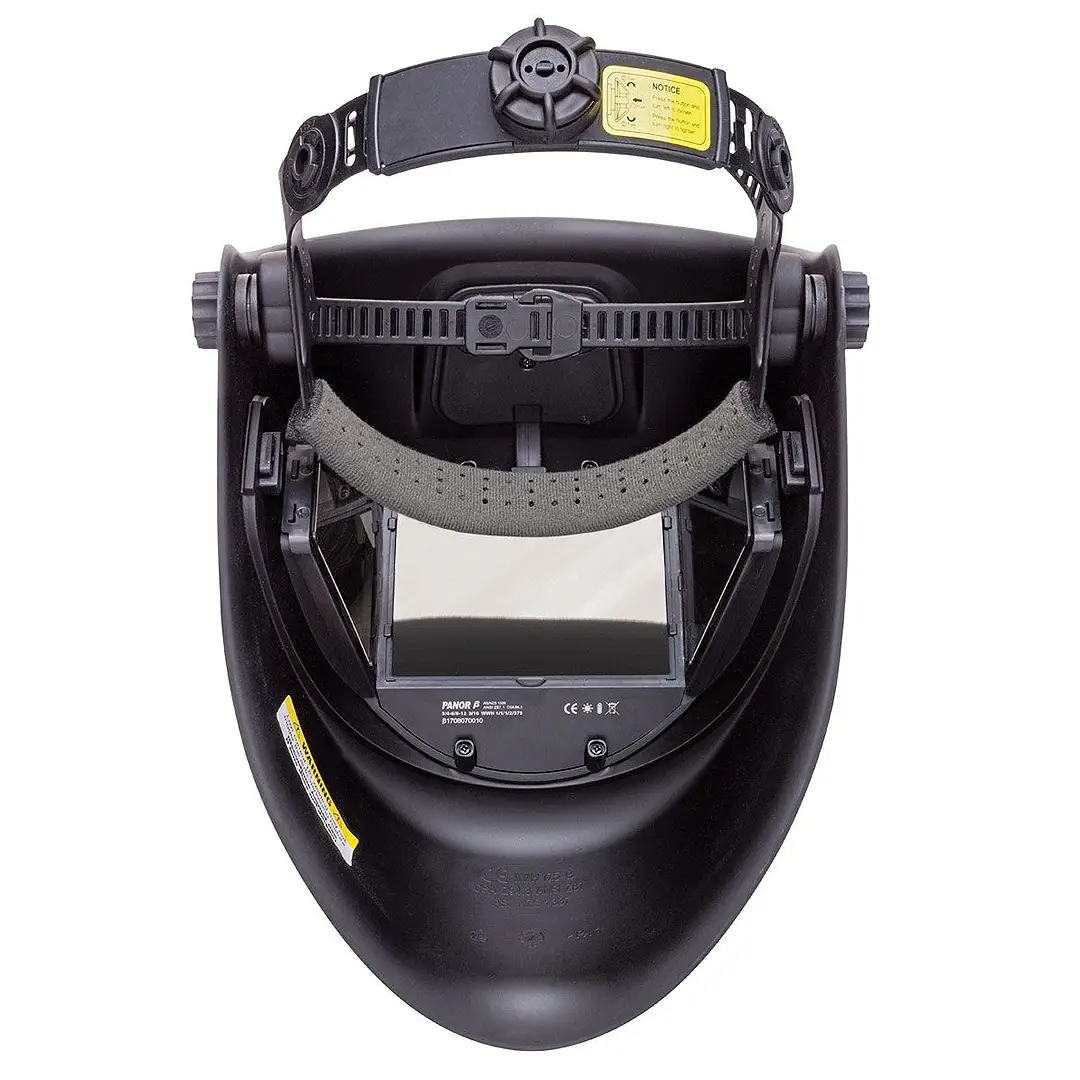

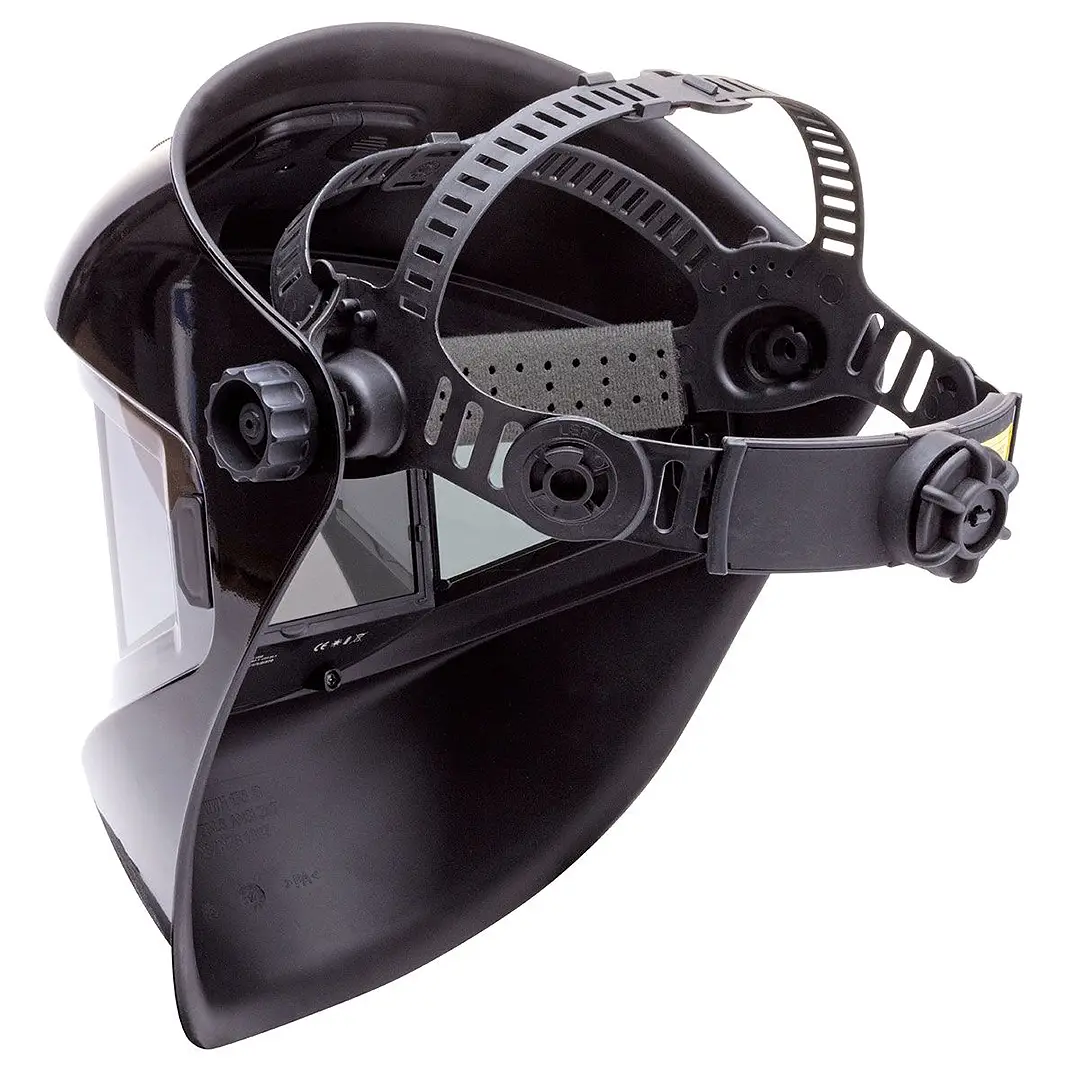

Comfortable Head Gear
This welding helmet has a 5 way adjustable headgear with sweat band for the perfect fit and comfort while welding. It will comfortably fit a head circumference between 21.6” – 24.8”.

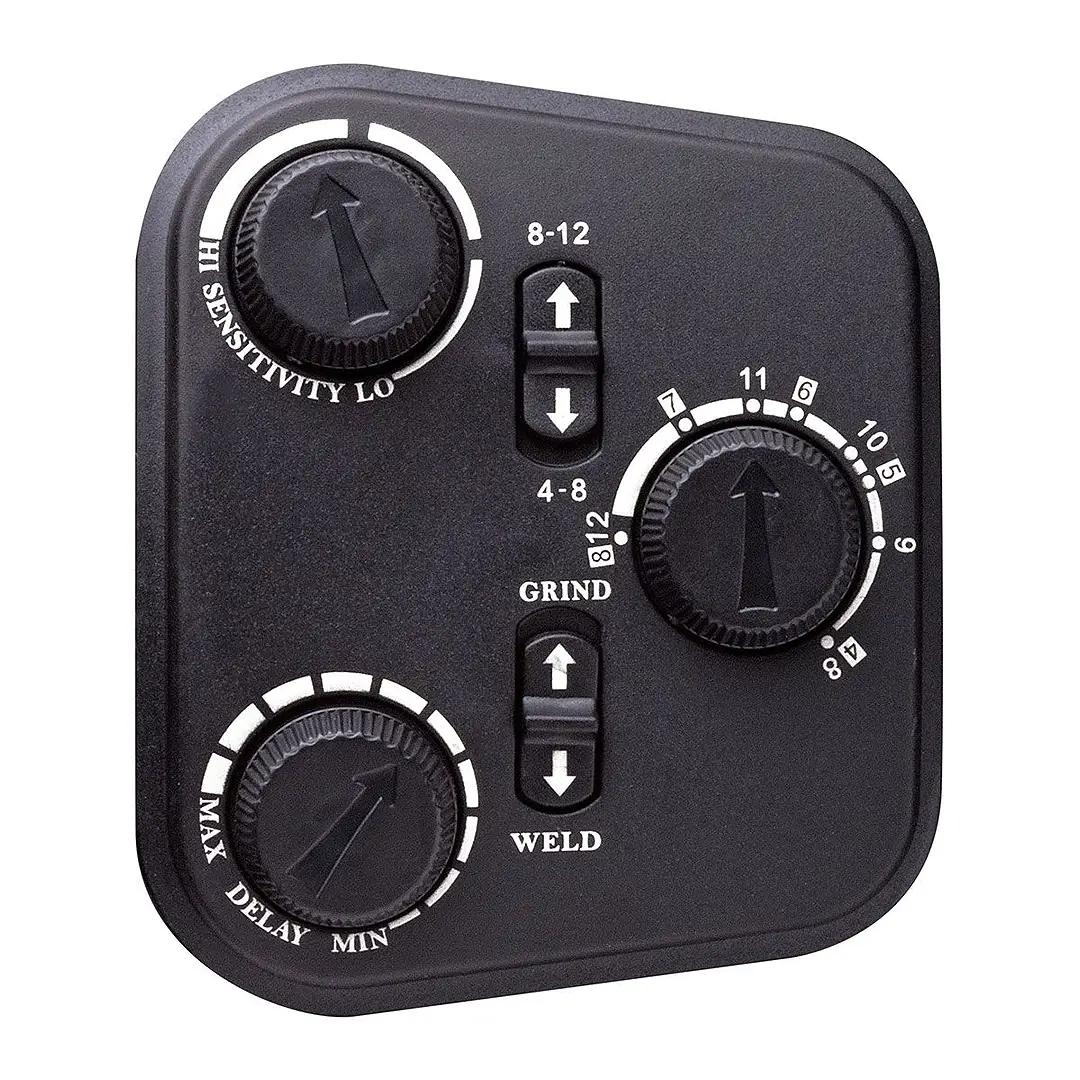

External Shade Controls
This Eastwood Auto Darkening Welding Helmet has infinitely adjustable sensitivity delay and shade adjustment. The main viewing area can be dimmed from shade 3 to 12, with Grind feature, while the side filters are auto dimmed to shade 11. Grind mode allows you to quickly reshape tungsten, grind spot welds and more without having to the remove the helmet.
Welding Helmet with Cover Plate assembled
3 spare outer covers
Light state: DIN3
Dark state: DIN11
Viewing area: 2(pcs) x 80mm Top /35mm Bottom x 68mm Height; (2(pcs) x 3.15″ Top /1.38″ Bottom x 2.36″ Height)
Light state: DIN3
Dark state: DIN 4-8/8-12
Viewing area: 115 x 85 mm (4.53” x 3.35”)
Switching time: Main window < 1/10,000S
Sensitivity: Stepless Adjustment, Outside helmet
Delay time: Stepless Adjustment Outside helmet 0.15S ~0.8S
Shade Adjustment: Outside & Stepless
Optical class: 1/1/1/2
TIG Capability: >2A
Grinding: Outside switch
Power Supply: Replaceable Li-Mn & Solar Combination
Batteries: (2) CR2450
UV & IR protection: Up to shade 16
Certification: CE, AS/NZS 1338, ANSI Z87.1, CSA 94.3
Warranty: 2 Years
Weight: 610G (1.35 Pound)
Material of helmet: NYLON
Fits Head Circumference: between 21.6” – 24.8
Always wear helmet gloves and proper clothing when welding to protect from UV and hot metal burns.
2 year warranty against manufacturer defects.
