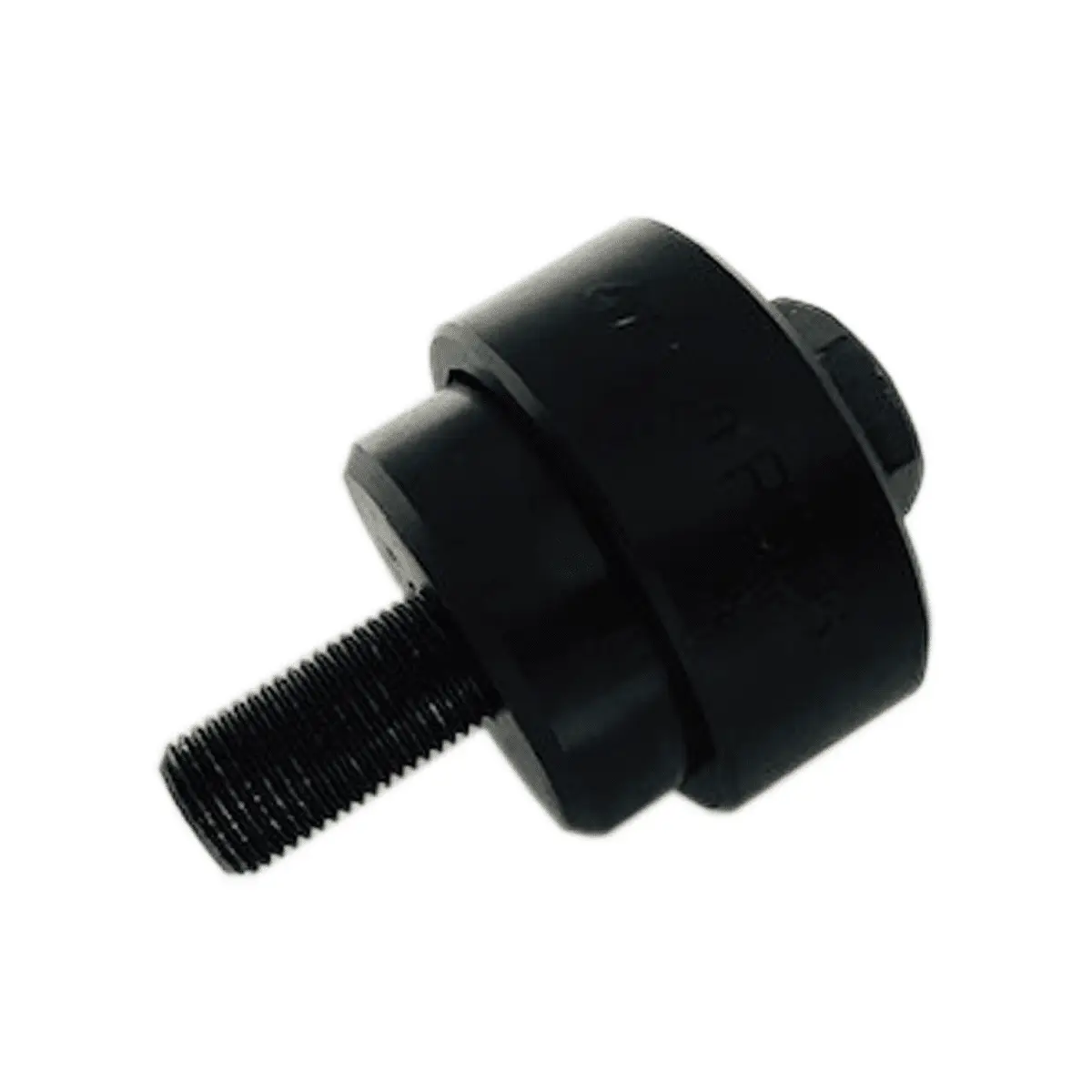

Q-Max Sheet Metal Hole Punch/Cutter 47mm Round (M16)

Producing a neat and accurate hole in sheet metal is virtually impossible without a hole or chassis punch.

The Q-Max Cutter is for manually punching holes in sheet steel up to a thickness of 1.6mm and aluminium up to 2.0mm.  This simple effective British made tool has been in production for over 50 years.

To use it simply drill a pilot hole of equal size to the allen head bolt and insert the bolt and female part on one side and opposing male on the other side. The allen bolt is then tightened using an allen key (not supplied), drawing the 2 parts together and producing a perfectly round hole with very minimal deformation.
