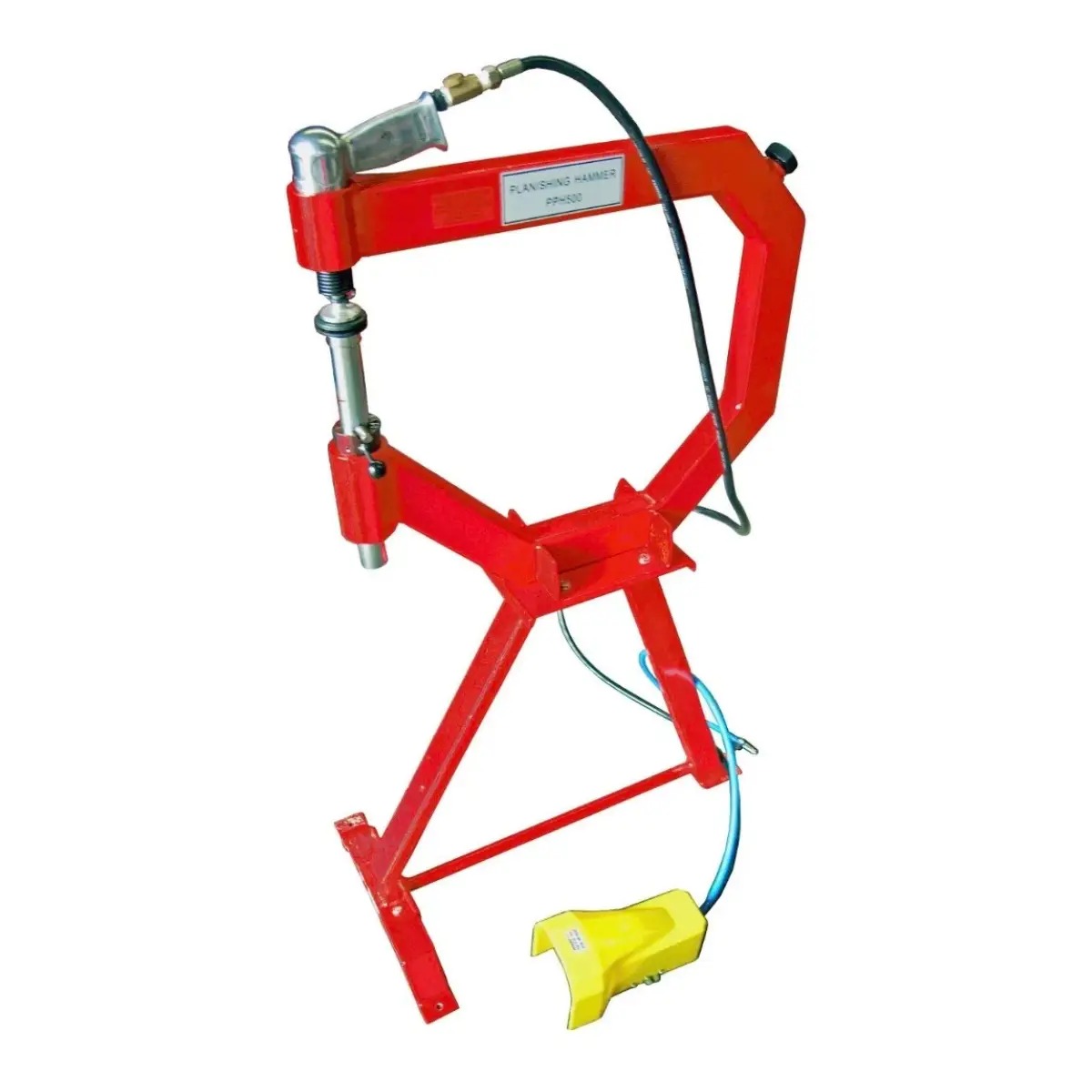

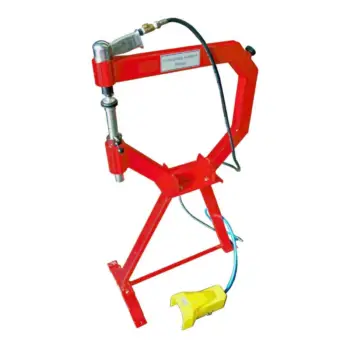

Light Pneumatic Planishing Hammer – 498mm Throat

This FROST Pneumatic Planishing Hammer is the perfect starter tool for forming sheet-metal parts for your vehicle.  the time you spend working on smoothing a panel, making domed or custom parts with this pneumatic hammer. It will do a better job and is much faster than using a hammer and dolly by hand.  Pneumatic planishing hammers are used for shaping sheet metal by hammering against a shaped surface.

Operating Pressure 50 – 100PSI  giving about 875 to 1350 blows per minute.

498mm Throat (19″). Stainless Steel Main Shaft and Hardened Steel Hammer Head.

This FROST Pneumatic Planishing Hammer is the perfect tool for forming sheet-metal parts for your vehicle. Ideal for Steel, Aluminum, Brass and Stainless Steel. You will be really impressed how simple it is to form Tank Sides, Fender Edges, Dashboards, etc. The great value for money starter machine is made of Heavy-Duty, Painted Steel Sections. These can be filled if required with Sand to increase stability stability and sound reduction, its has also predrilled holes for mounting to the floor. The Foot Pedal operation allows you have your hands free to get the best results. It is also supplied with 25 mm, 50 mm and 75 mm Dollies. Strokes per minute 875-1350. Compressed air connection 1/4″. Weight 10 kg without sand

Features at a glance:

• Foot Pedal
• Filter/Regulator.

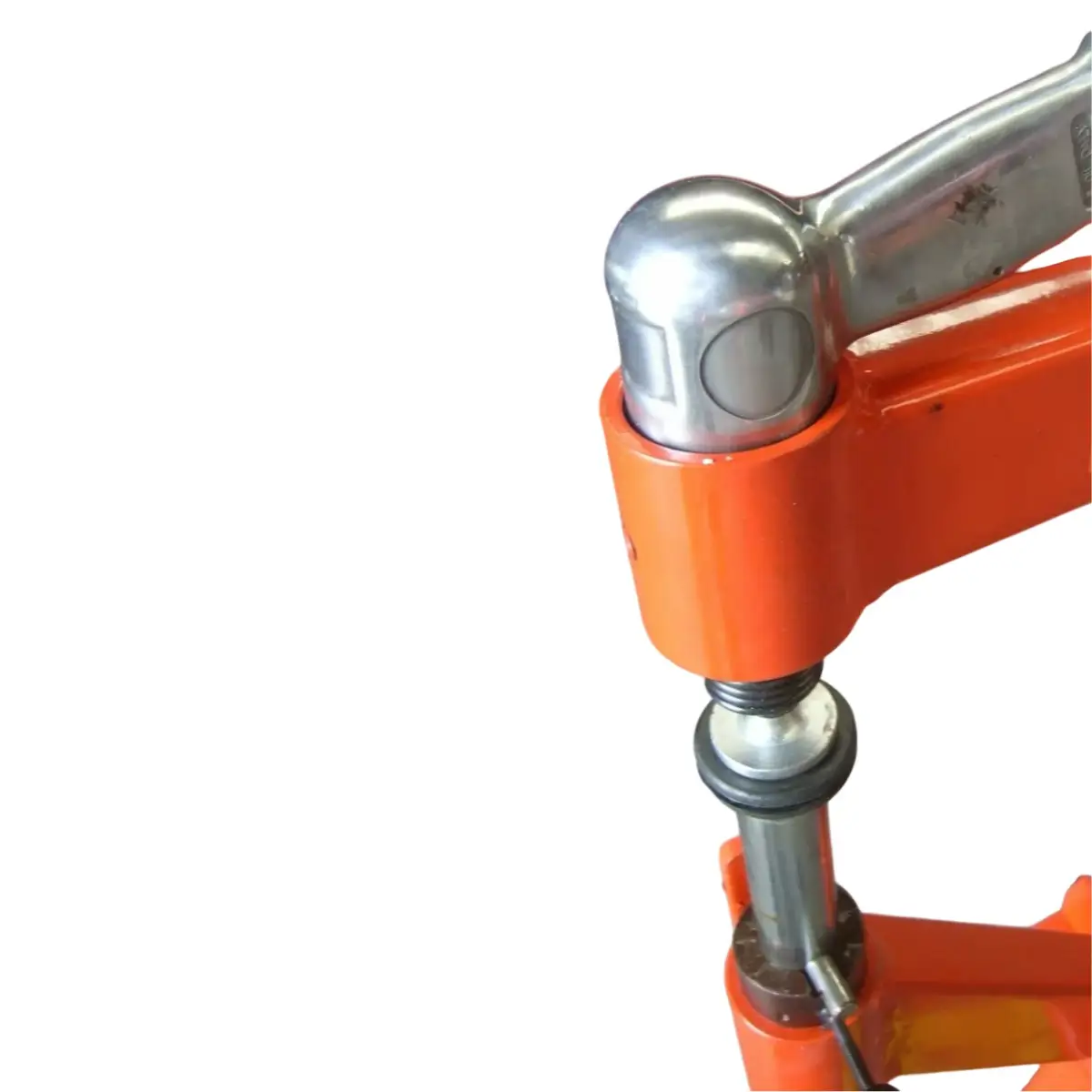

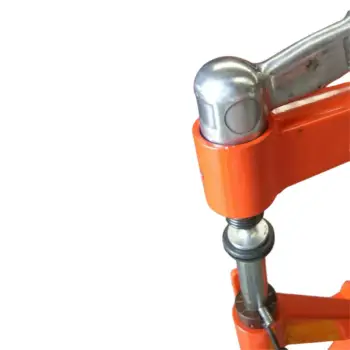

• Hammer Head
• 3 Dies (32 mm diameter, 1″, 2″ and 3″ radius)- Throat 498mm (19″)
• Max Thickness: 1.2mm
• Head Opening: 100m
• Air requirement: 50-100 PSI
• Air Consumption: 4CFM
• 710 mm length, 400 mm width, 1200 mm height.
• Weight 26 kilos
