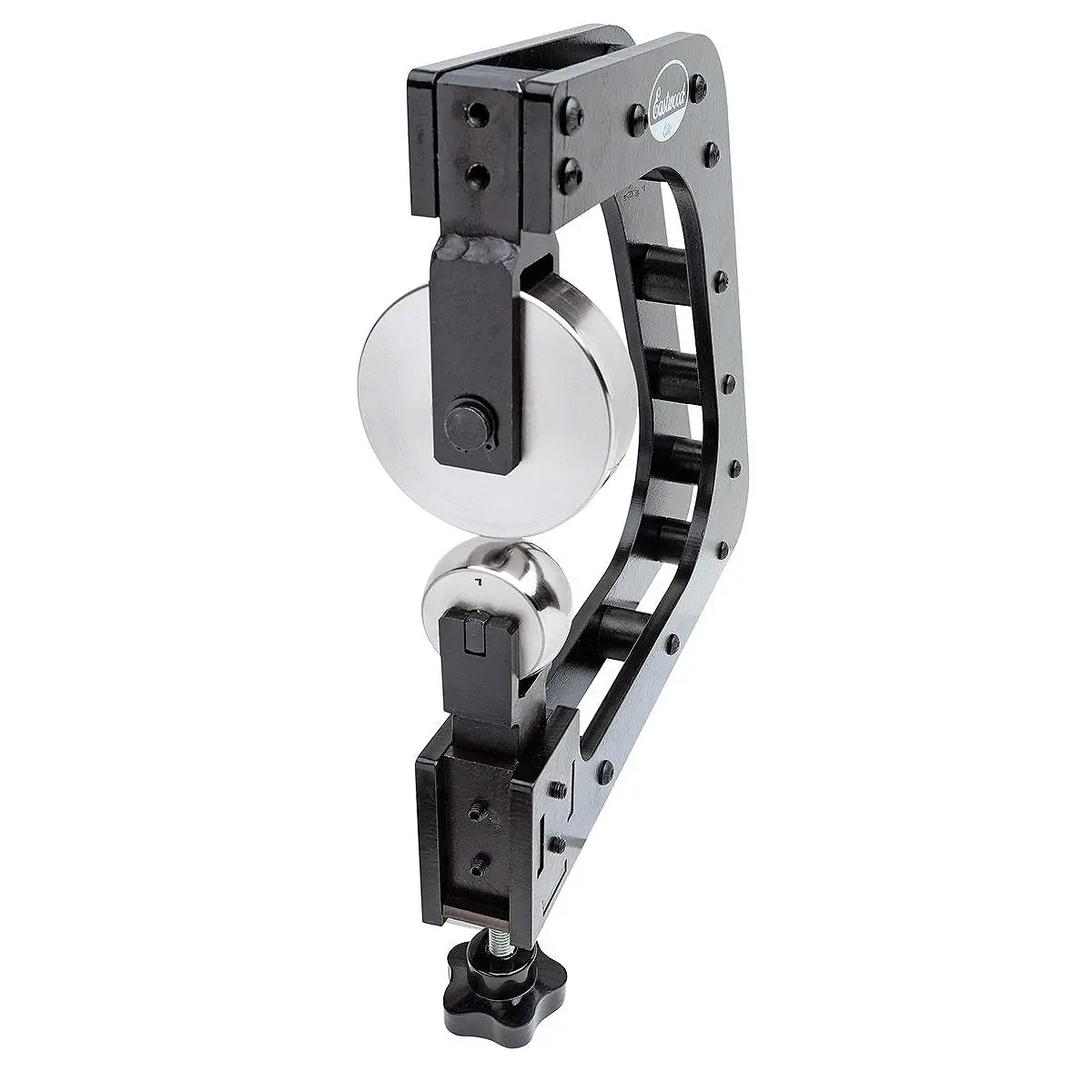

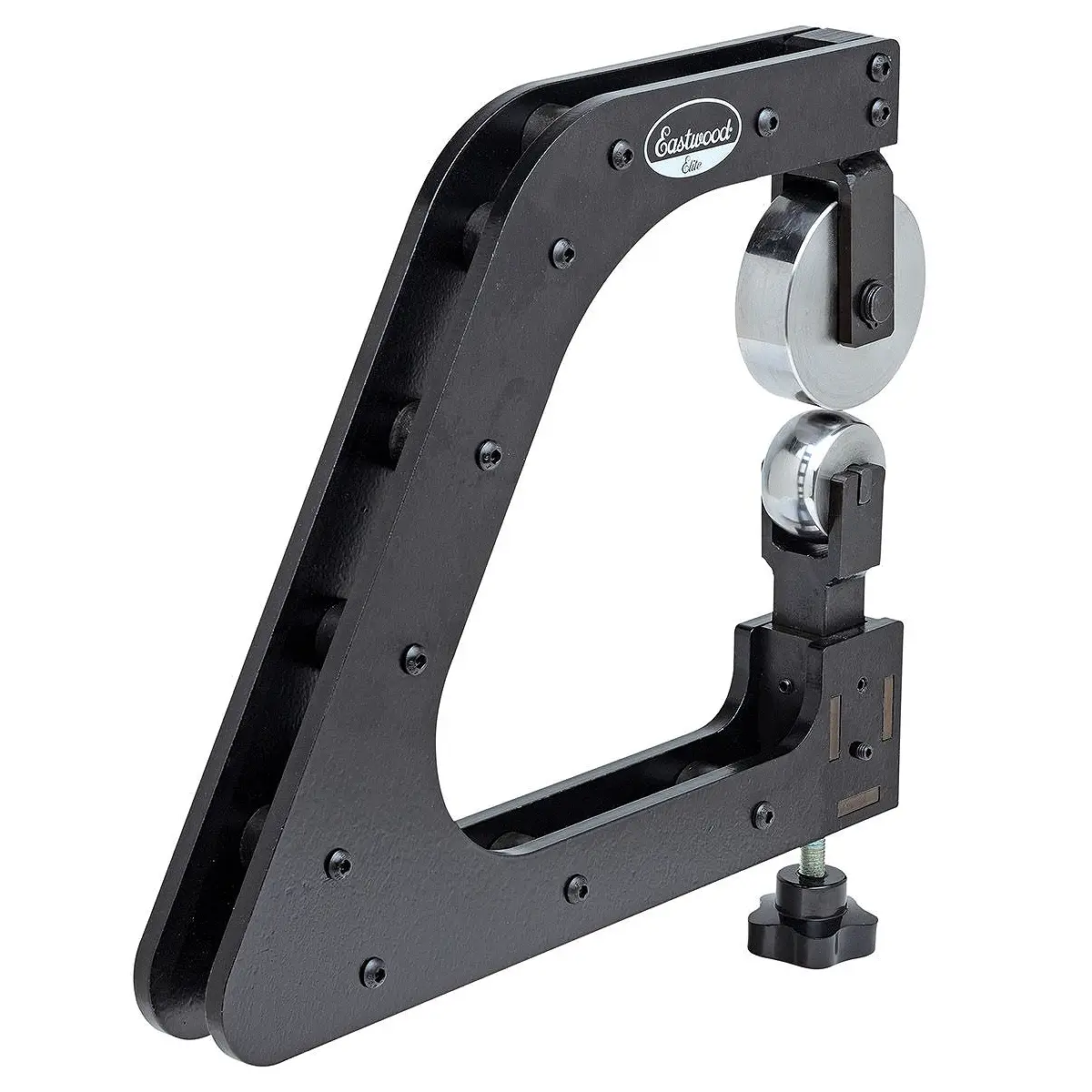

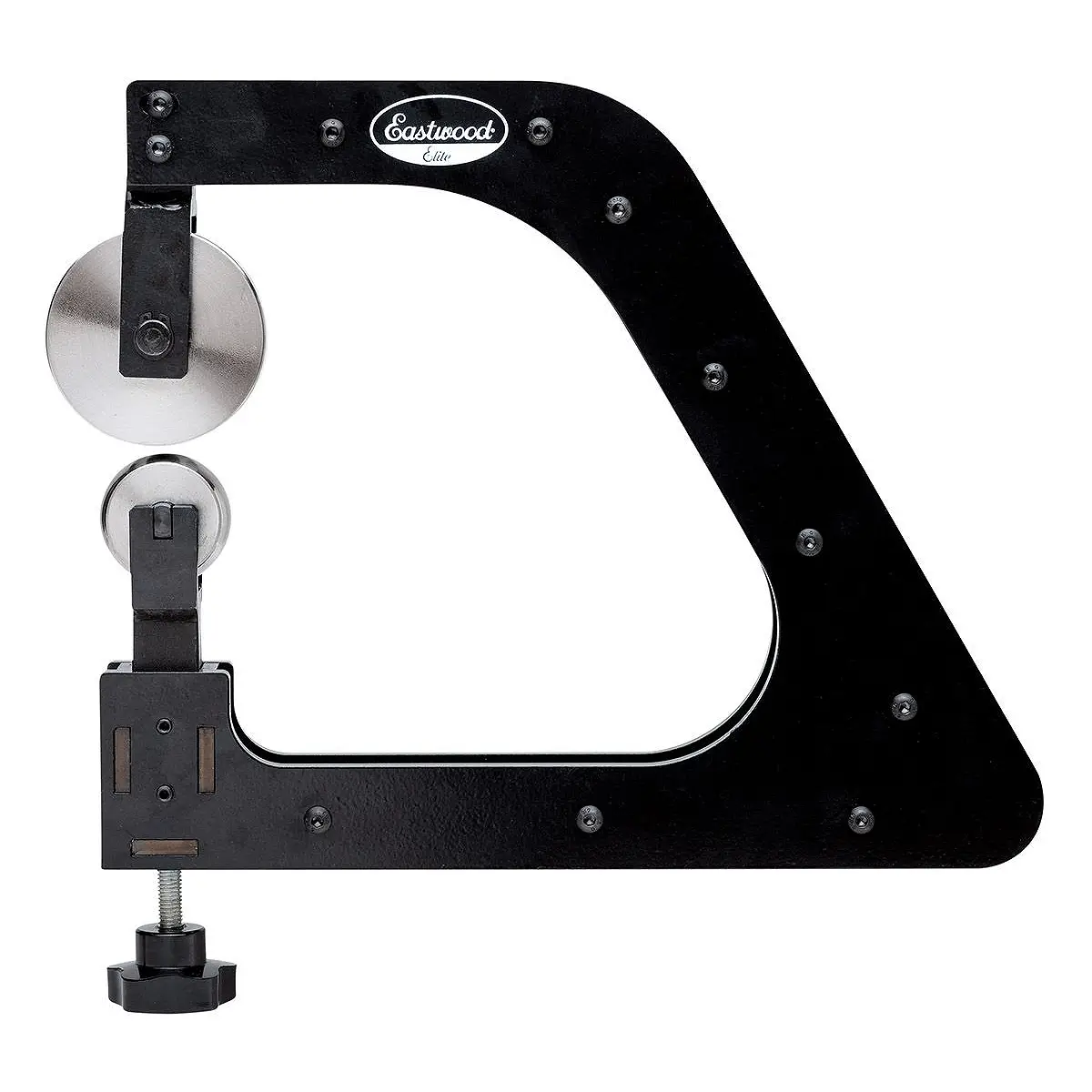

Elite Mini English Wheel

With Eastwood’s Elite Mini English Wheel, fabricating compound curves in metal is easier than ever. Whether you’re new to English wheels or simply require a space-saving tool for small jobs, this wheel delivers huge performance from a small package.

Simply put, this machine is a smaller version of the famous English wheel that allows you to make elaborate patch panels that are either too small for a larger wheel or don’t require the expenditure of one. When you don’t have to try to form a patch panel over your knee, you will improve your metal forming skills and manufacture patch panels appropriately.

Product Features:

• 7.5 inch throat depth to form a 15 inch wide panel (up to 20 inches on angular plane)
• Wheels and anvils rotate 90 degrees to provide unlimited throat depth in that direction for larger projects
• Includes 3.19 inch upper wheel and four lower anvils (1/2″, 1″, 2″, 3″ radius)
• Micro-adjustable anvil wheel
• Form up to 18 gauge steel and 16 gauge aluminum

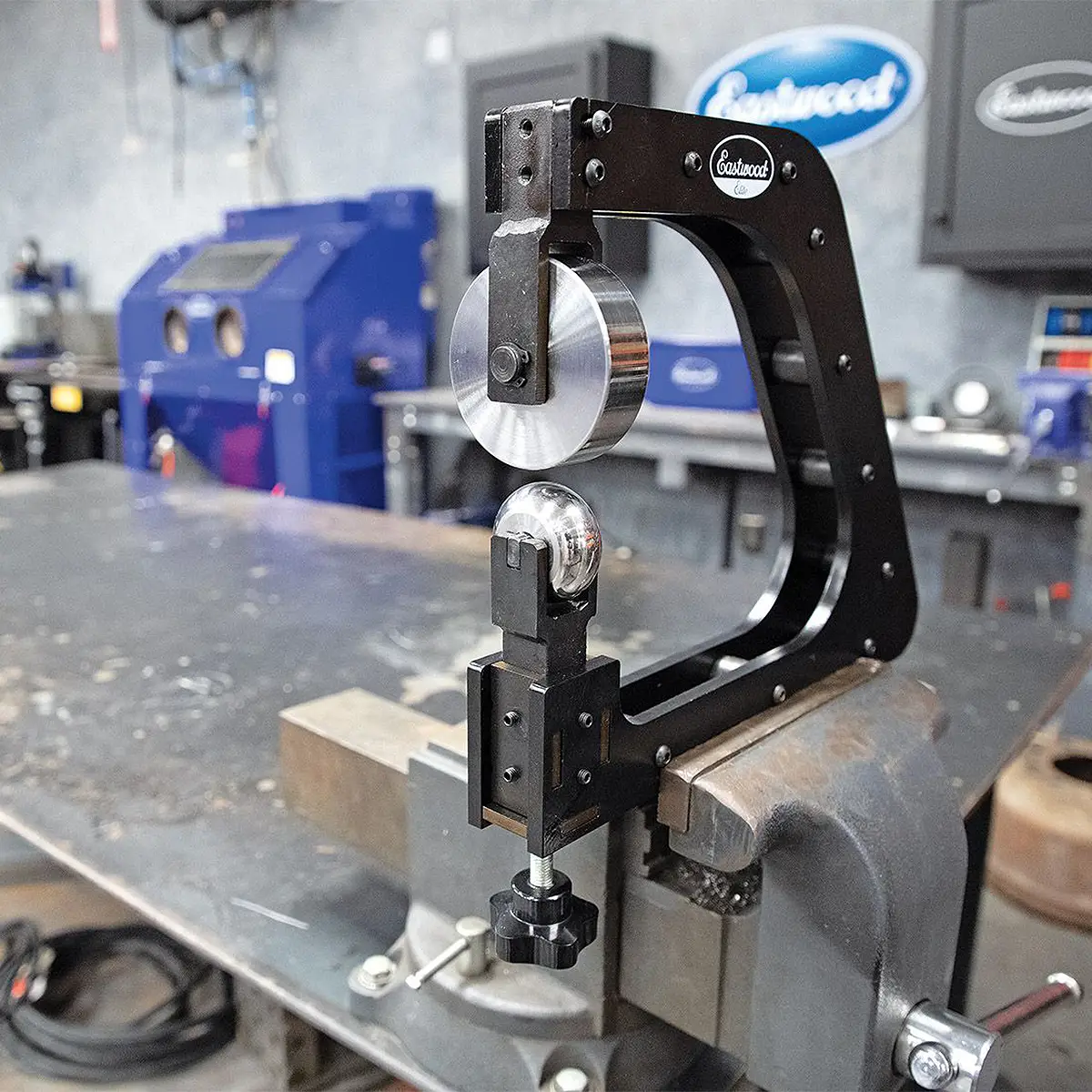

• Convenient vise-mount design allows for easy use and storage

Rigid construction in a small package makes this product ideal for a small shop or someone who wishes to start forming metal, whether for vehicle panels or general fabrication. Even if you already have a large wheel, many enthusiasts and pros appreciate the advantages of a smaller unit.

When you stretch rather than bend your patch panels, they will weld considerably cleaner. When you start welding that “bent” panel, it will revert to its previous flat shape, and you will not achieve the results you want. A panel created in an English wheel that is really stretched into shape will tend to keep its shape during welding, resulting in much better fit, easier welding, and cleaner repair.

Package Contents:

1x Frame Assembly with Yokes and Screws

1x Upper Wheel Axle

2x Upper Wheel Axle Snap Rings

1x 3.19″ Diameter Upper Wheel

1x Anvil Axle

1x 1/2″ Radius Anvil

1x 1″ Radius Anvil

1x 2″ Radius Anvil

1x 3″ Radius Anvil

1x Jackscrew
