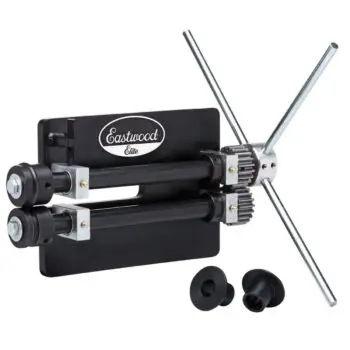

Elite 8″ Heavy Duty Bead Roller

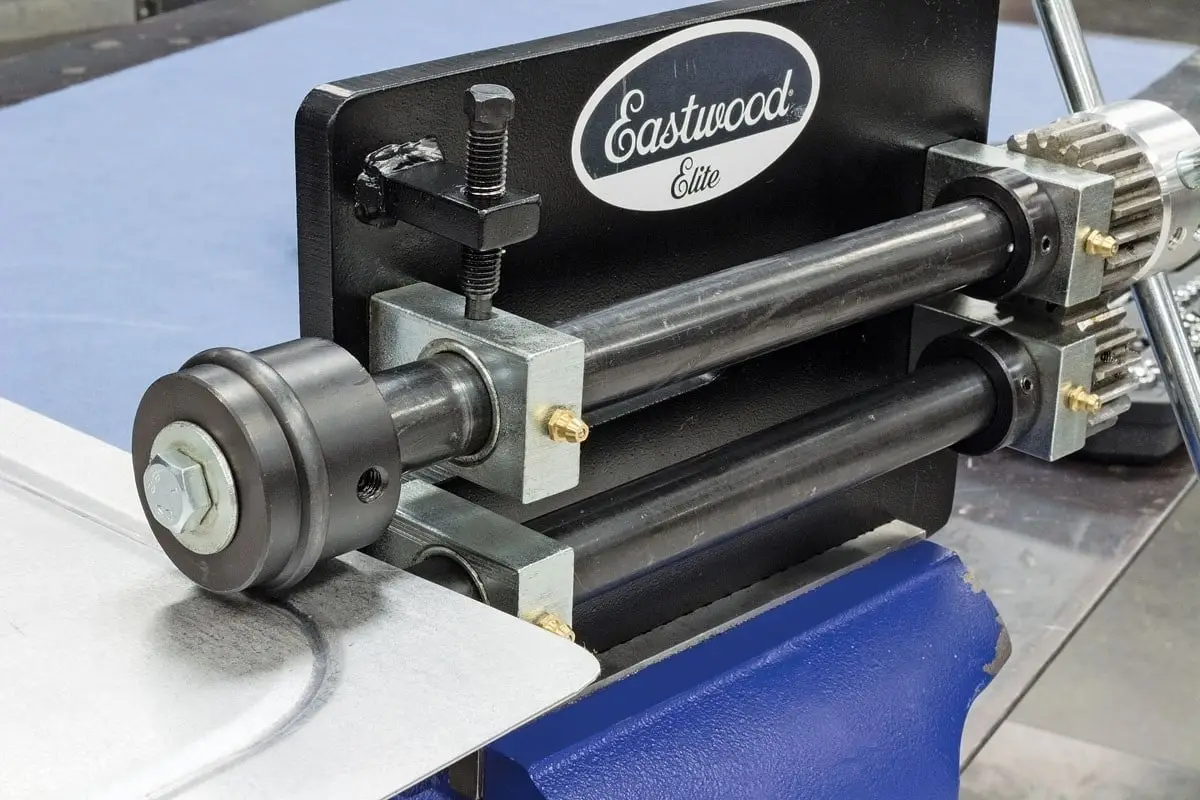

Eastwood Elite 8″ Heavy Duty Bead Roller is one of the only manual bead rollers on the market that enables you to produce strengthening ribs in panels, shape edges and form intricate designs in any panel by yourself.

• 8” throat depth
• Handles up to a 16″ wide panel
• Industry standard 22mm shafts

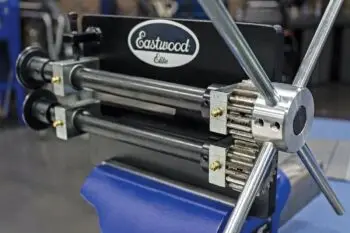

• Gear-driven design delivers maximum forming power

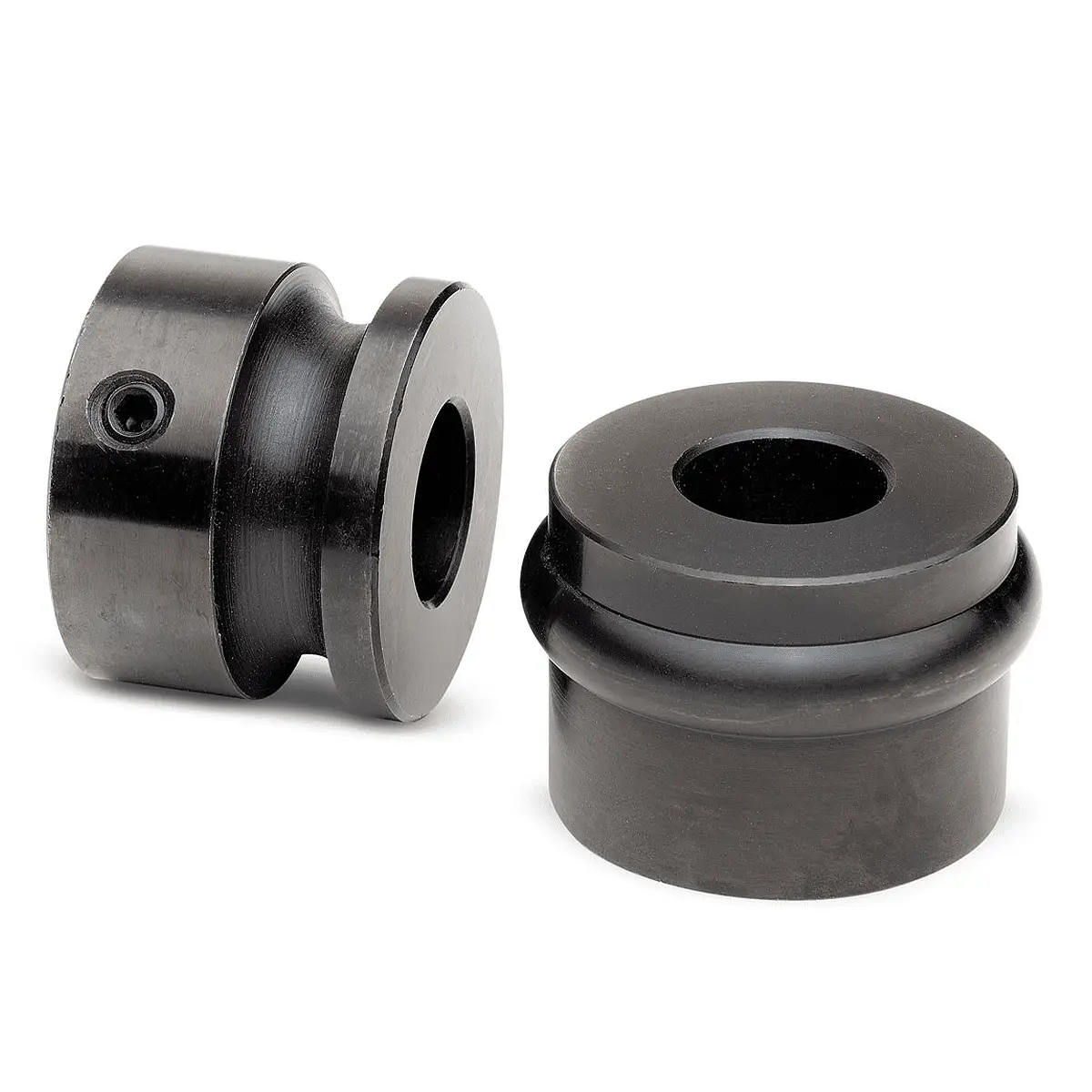

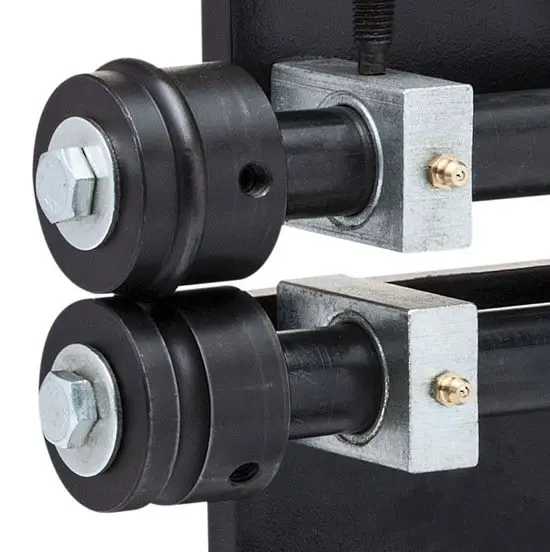

• Includes 3/8″ Bead Die Set and Offset Die Set

You can also create channels and flanges with the offset flange dies that are included. The gear-driven design delivers maximum forming power while requiring minimal handle force for the greatest accuracy. The 8” throat depth provides the ability to reach the center of a 16” panel.

ONE MAN OPERATION

With the 4 spoke crank handle and the smaller size of this Bead Roller it only takes one person to easily operate and form panels.

INCLUDES MOST POPULAR DIE SETS

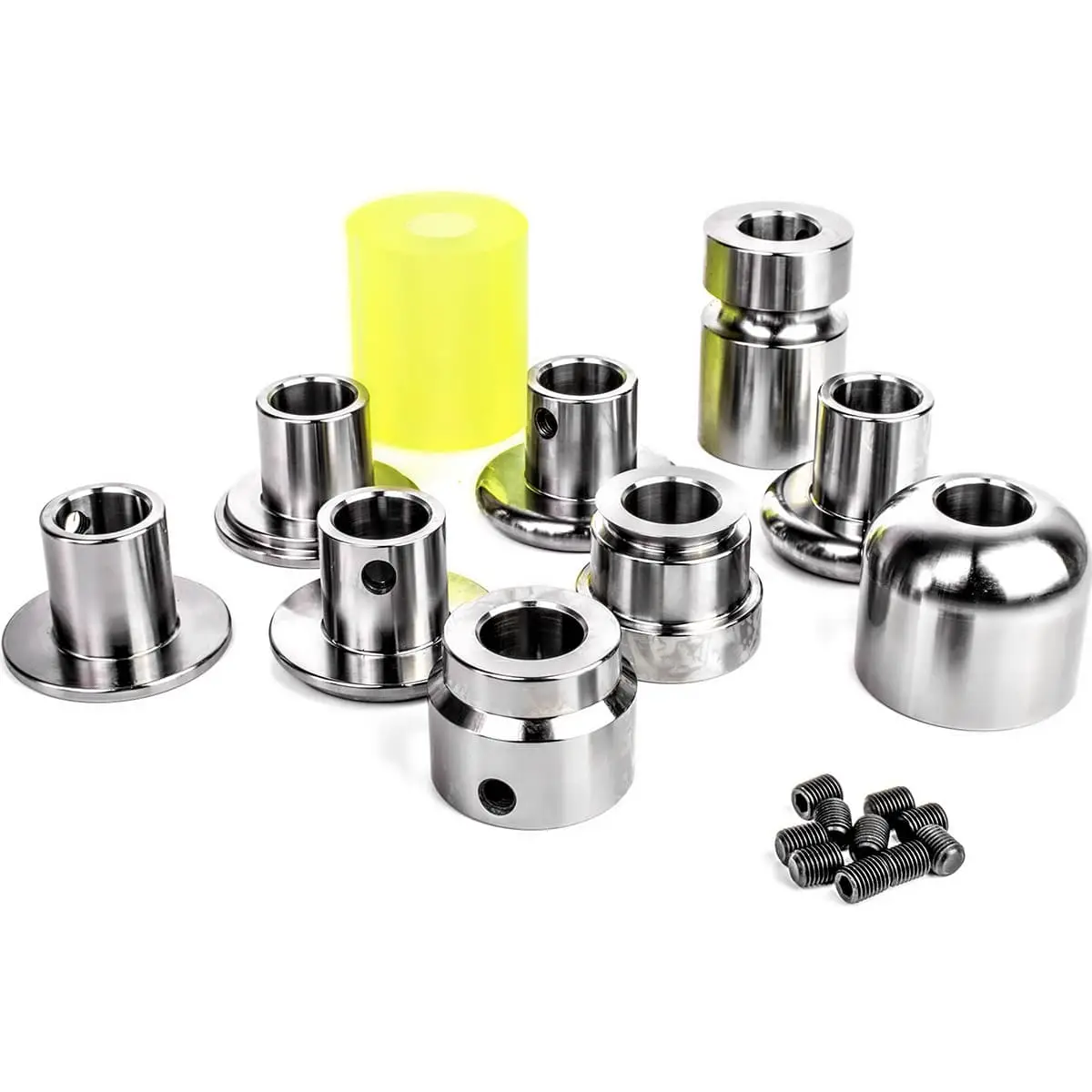

This Bead Roller includes a popular 3/8″ Bead Die Set and Offset Die Set that you will need in most of your fabricating projects. With the Industry standard 22mm shafts you will be able to use most other die set available like the optional 20267 Eastwood Bead Roller Metal Fabrication Forming Dies.

Maximum material working thickness:
• Steel = 18 Gauge
• Aluminum = 16 Gauge
• Stainless = 20 Gauge

Maximum panel width (working from center): 16”

Weighs 15KG
