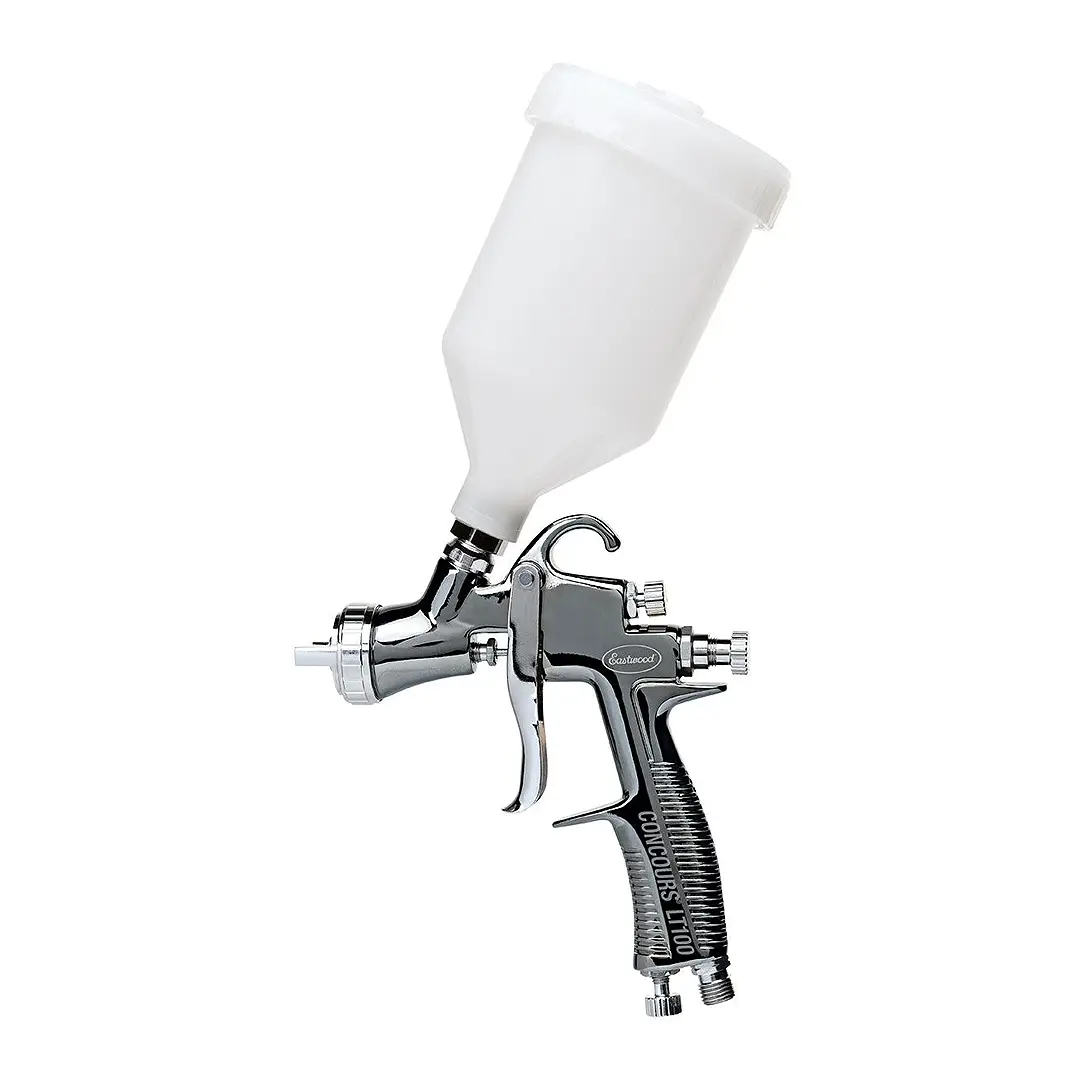

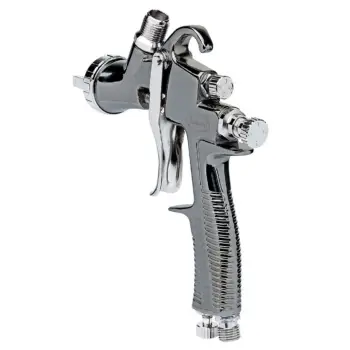

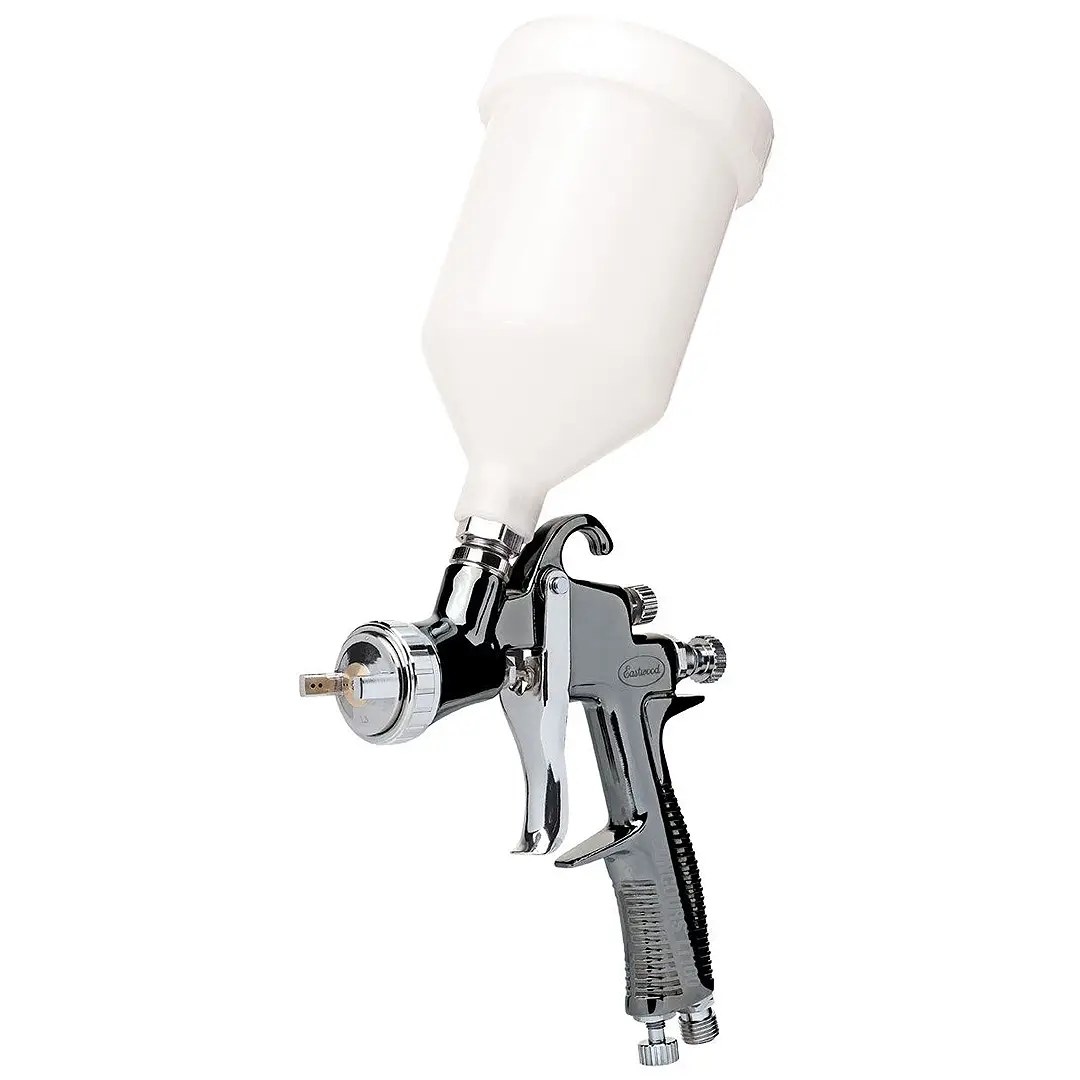

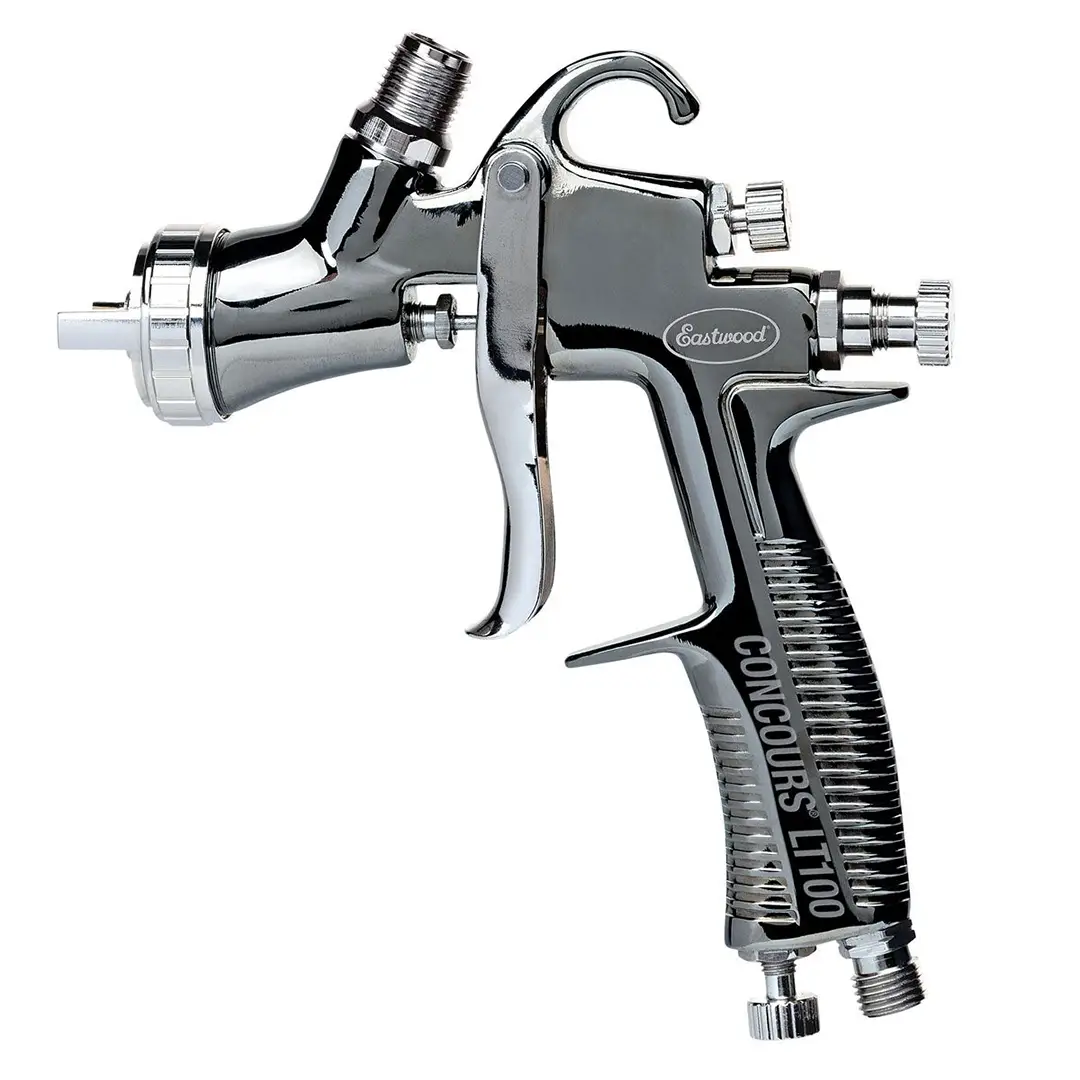

LT100 HVLP Spray Paint Gun 1.3mm

The Eastwood Concours LT100 HVLP Paint Gun Features:

• Professional quality painting from a home compressor
• Low CFM – requires just 4.5 CFM @ 30PSI
• Great atomization & wide spray pattern
• 1.3mm base coat/clear coat nozzle included
• Compatible with all types of coatings
• Stainless internal passages & brass air cap
• 1.5mm, 1.7mm, and 2.0mm nozzles available

The Concours LT provides great atomization and wide spray pattern at an economical price. The LT has excellent transfer efficiency with little over-spray. Aluminum anodized body for chemical and paint resistance. Brass machined air cap, stainless steel passages and durable construction for years of reliable service. Compatible with solvent and waterborne coatings. Includes 1.3mm nozzle size, with optional sizes available separately. Includes plastic cup, cleaning and kit. Operates on only 4.5 CFM at 30 psi, ideal for small home type compressors.

Specifications:

• Requires 4.5 CFM [120 l/min] @ 30 PSI [2 Bar]
• 1/4” male NPT air input threads
• M16 x 1.5 NPS paint cup inlet attachment threads
• 1.3 mm stainless steel needle/nozzle set installed (others available)

Please note that many variables affect the adjustment of a paint gun including paint viscosity and type, atmospheric conditions such as humidity, barometric pressure and temperature as well as air inlet pressure and operator preference. Always ‘tune’ the gun before each use as prevailing conditions may not be the same as the previous use. It is always best to test spray on sheets of cardboard or masking paper with the actual paint you will be applying while making your adjustments to become familiar with the gun and achieve the ideal Fluid Control Setting.

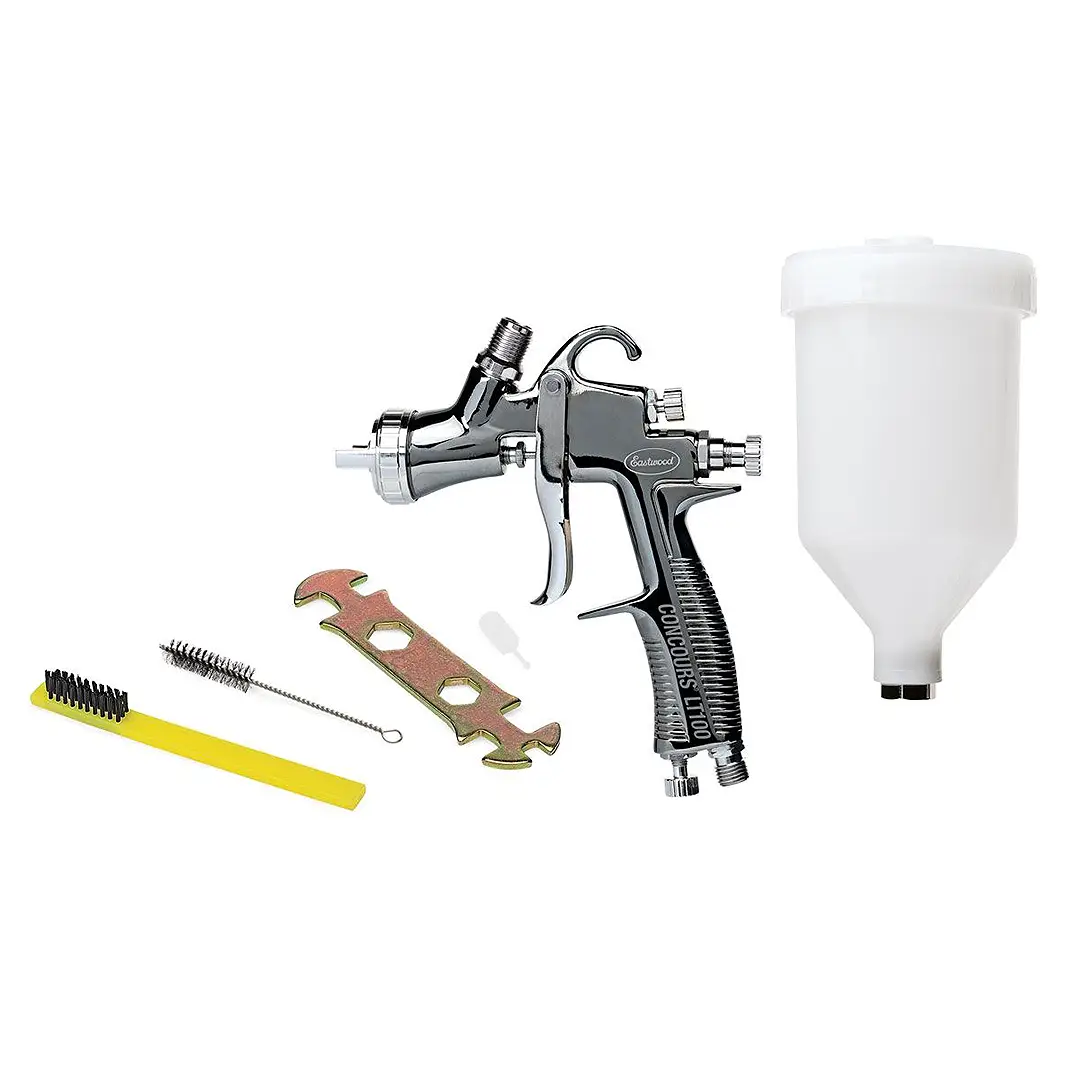

Contents:

• (1) HVLP Paint Gun with 1.3mm stainless steel nozzle/needle set installed
• (1) 600ml., solvent resistant, composite Paint Cup
• (1) Paint Cup Inlet Filter
• (1) Paint Gun Wrench
• (1) Round Cleaning Brush
• (1) Rectangular Cleaning Brush
