Bead Roller Metal Fabrication Forming Dies

THE EASTWOOD BEAD ROLLER METAL FABRICATION FORMING DIES

• Fits most bead rollers with a 22mm shaft
• Includes 9 steel dies and 1 polyurethane lower wheel
• Create offsets and flanges, form style lines, contours and channels
• Dies are machined out of CR12 steel with a 35 HRC hardness

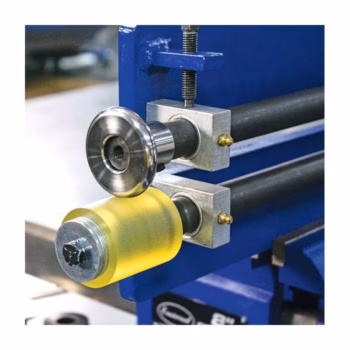

This kit includes 10 dies to use with any bead roller with a 22mm shaft. With these additional dies on your bead roller you can create offset flanges, contours, deep channels, and style lines. This kit also includes a polyurethane lower “skate board” wheel, which can be used with a variety of upper dies. The dies includes in this kit are inside and outside offset dies, 3/8 and 1/2 inch tipping dies, round and knife edge tipping dies, 180 degree lower die, lower edge forming die and a lower forming die. All are made of CR12 steel with a Rockwell hardness of 35 HRC.

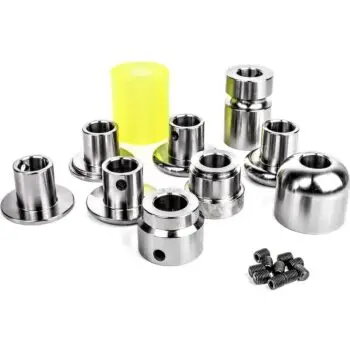

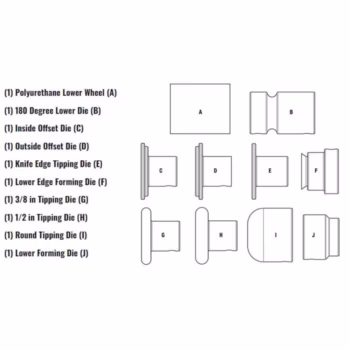

Contents:

• (1) Polyurethane Lower Wheel (A)
• (1) 180 Degree Lower Die (B)
• (1) Inside Offset Die (C)
• (1) Outside Offset Die (D)
• (1) Knife Edge Tipping Die (E)
• (1) Lower Edge Forming Die (F)
• (1) 3/8 in Tipping Die (G)
• (1) 1/2 in Tipping Die (H)
• (1) Round Tipping Die (I)
• (1) Lower Forming Die (J)

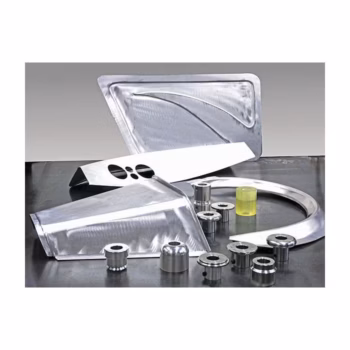

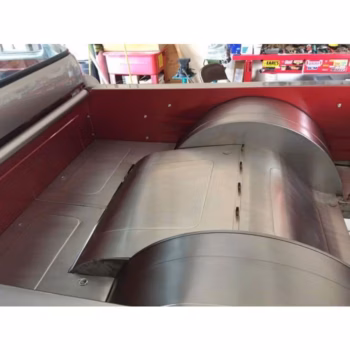

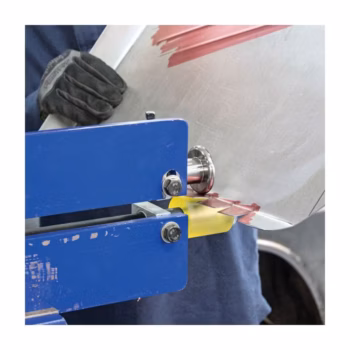

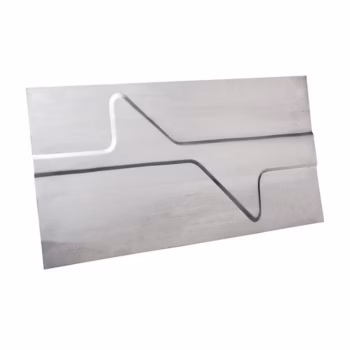

The following images illustrate only some of the many contour configurations that can be created in metal by combining the dies in this kit. The resilient composition of the “A” Polyurethane Die offers mar-free backup for any Eastwood Die and allows for the creation of virtually any metal shape imaginable.
