Air Tool Storage Rack Pneumatic Tool Holder

Eastwood 10-Tool Pneumatic Tool Rack.

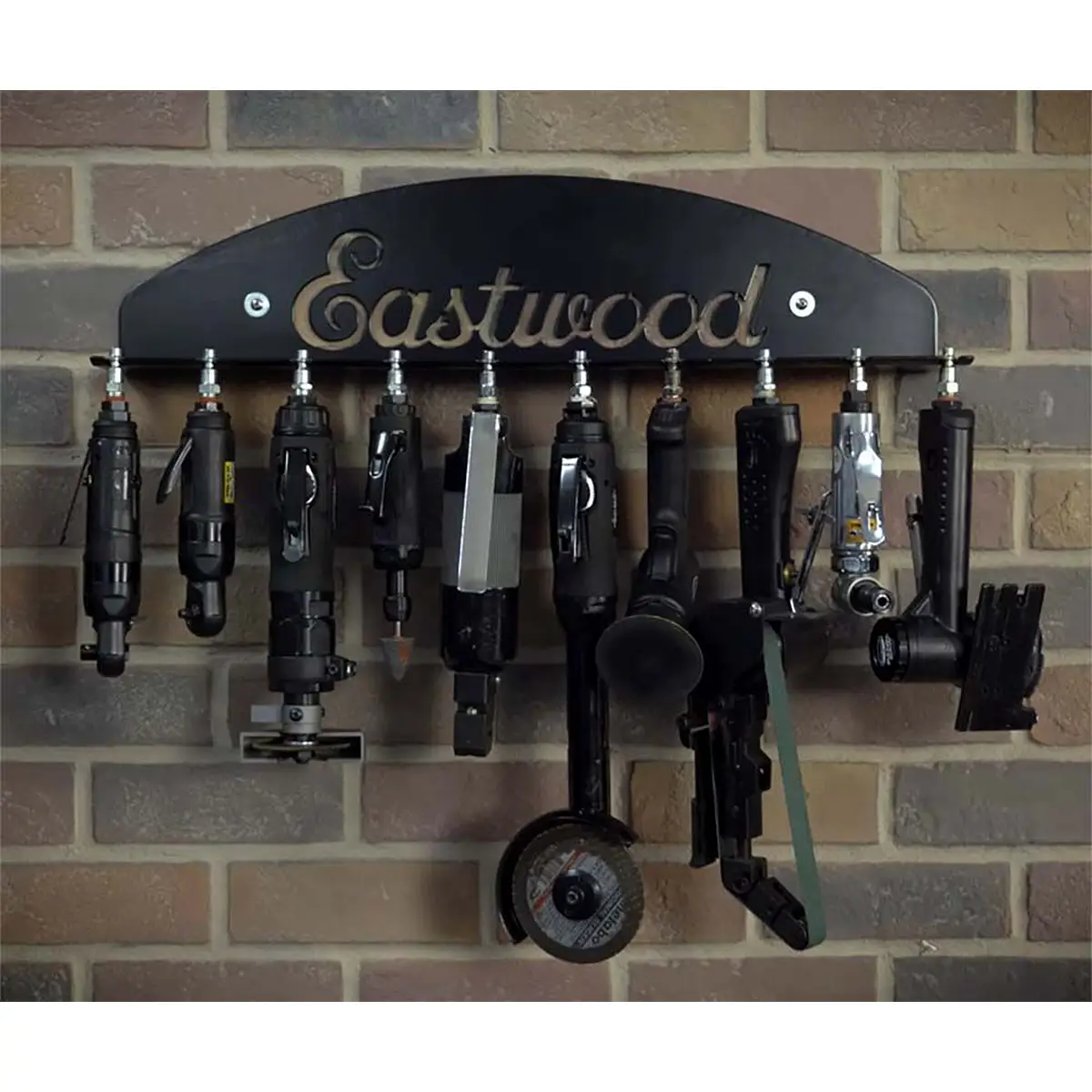

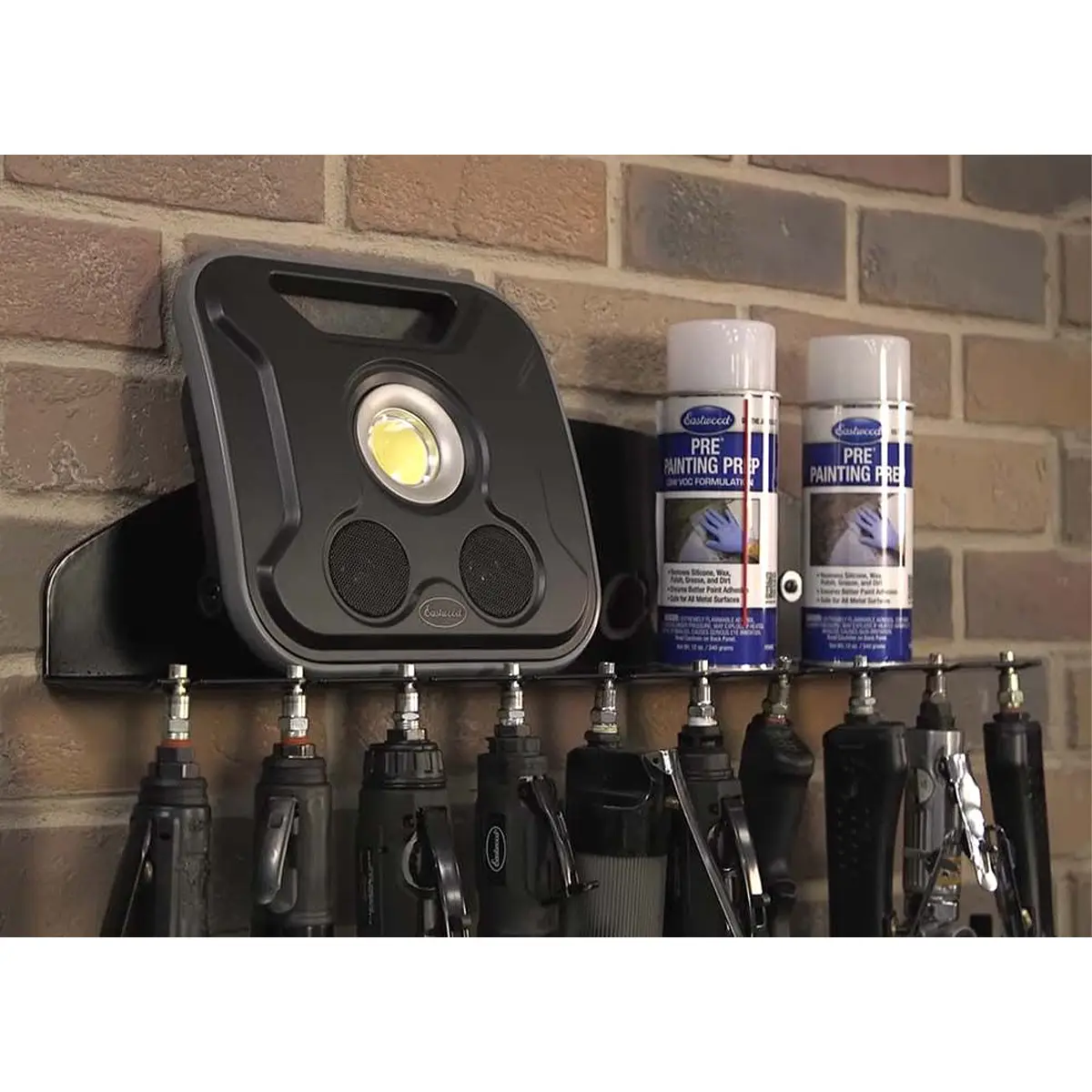

Both professionals and DIYers know that tools last longer if you take care of them. The Eastwood Air Tool holder stores up to 10 full-size pneumatic tools on your wall. It’s made of 14-gauge steel that holds up to 50 pounds worth of tools. We’ve spaced the mounting holes 16 inches apart so drills, sanders, hammers and grinders don’t bump against each other. A powder-coated finish helps resist corrosion for many years of tool storage.

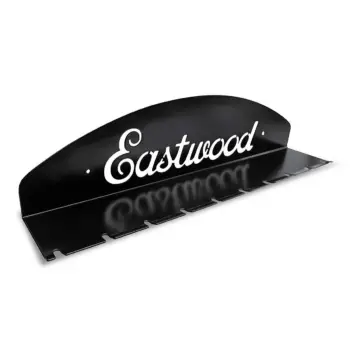

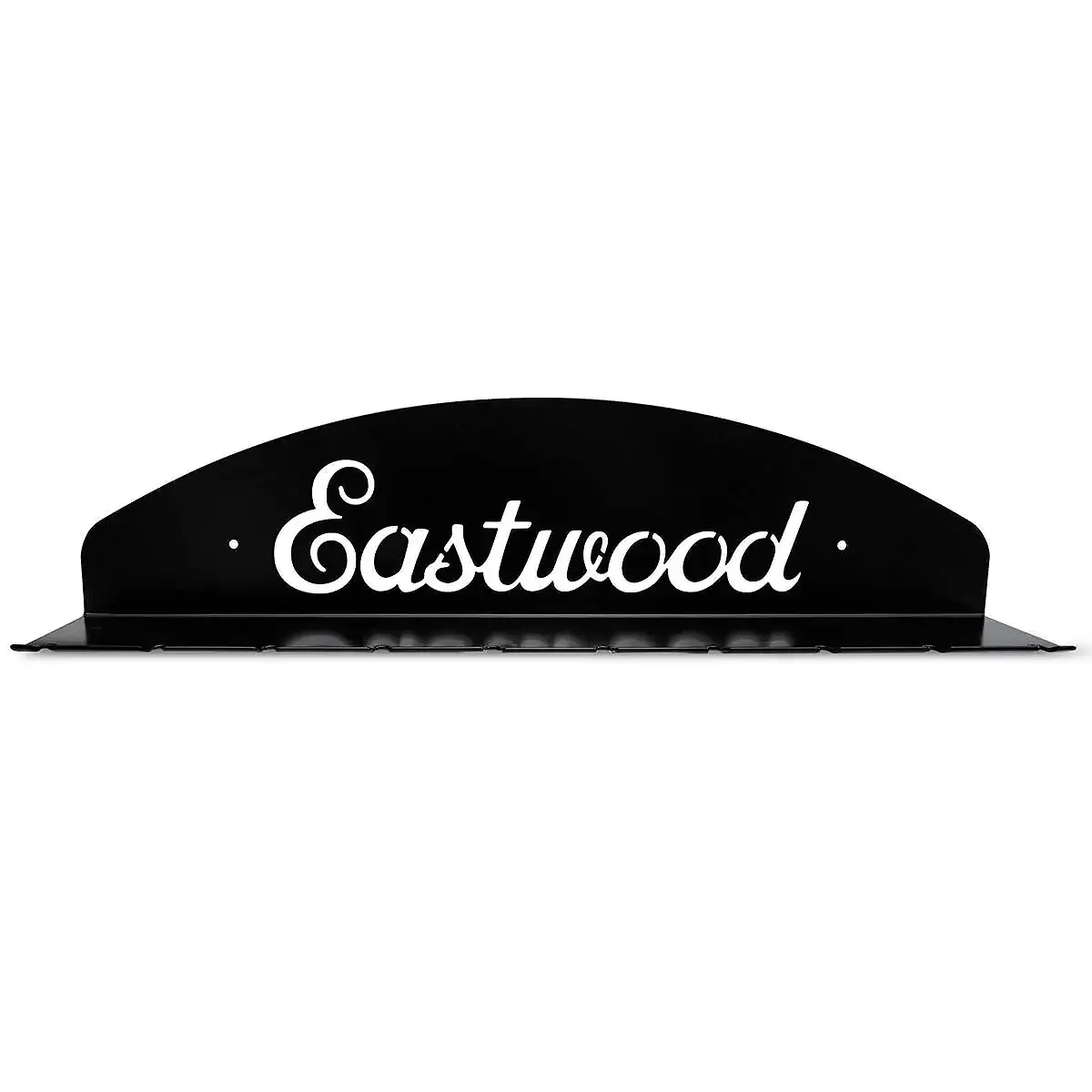

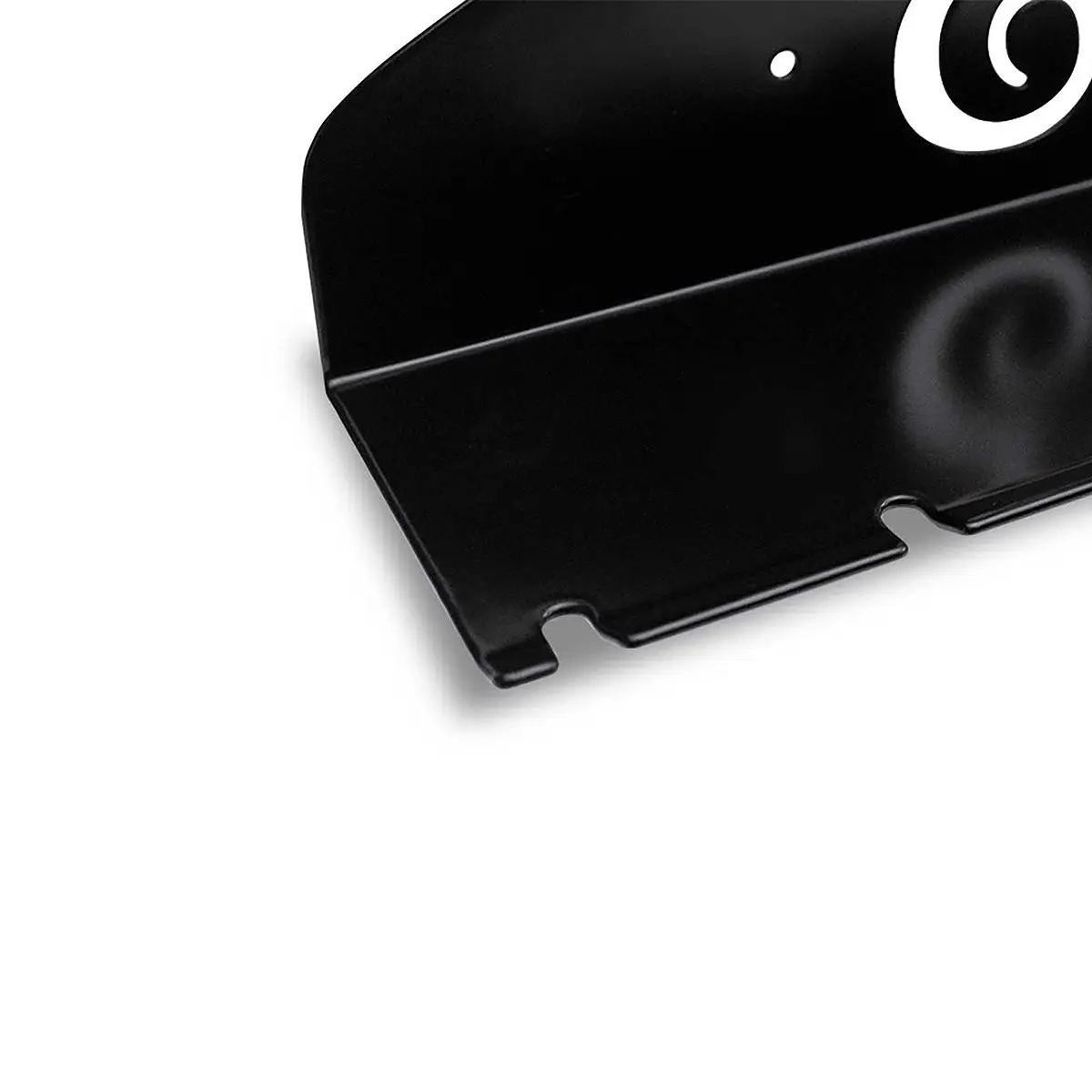

Get an air tool storage rack for convenience and easy access to your most important garage instruments. It has a stable design with a slight bend on each end so the tools don’t slide out. Use a pair of quarter-inch screws or bolts to secure the storage wrack to your wall.

• Made of 14-gauge steel with black powder-coat finish
• 10 mounting holes with 16” spacing
• Two ¼-inch center holes on mounting plate

Specifications:

Installation:

This unit must be securely mounted on a wall, cabinet, workbench etc, capable of holding 50lbs. [22.6.3kg.] plus pulling stresses from operation. The use of 1/4” screws with substantial washers and attachment to a structural member is highly recommended.

• If placing unit on a studded wall, attach to studs using pre-punched, 16” spaced holes as a guide.
• If attaching to a solid concrete or hollow block wall, the use of the proper anchors is required.
• For less secure mounting surfaces, or other than 16” stud spacing, the use of a 1” x 12” x 36” backer board affixed to the wall is suggested as a mounting surface.

Use

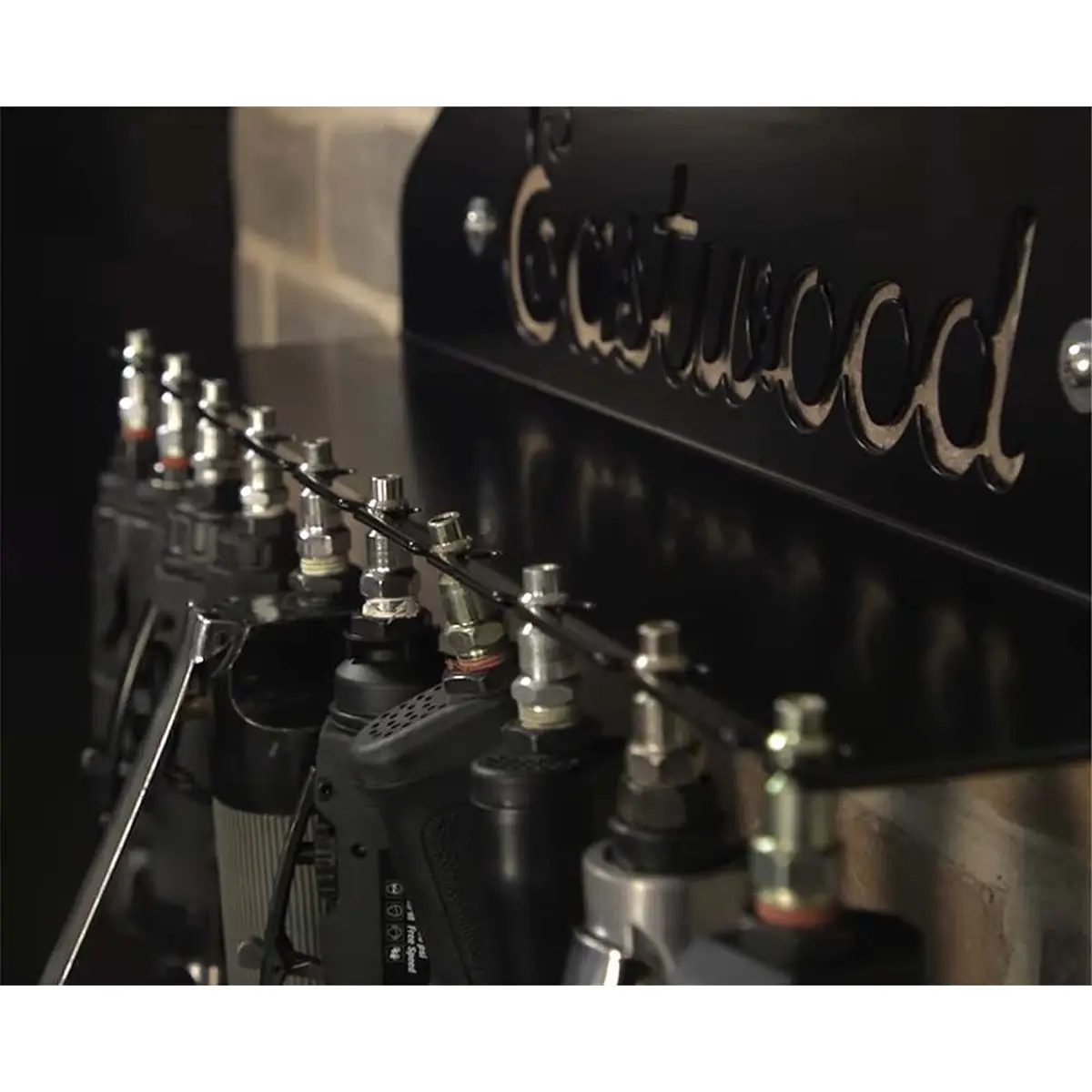

Using the turned section of standard 1/4” male quick-disconnect air fittings, commonly attached to air tools (not included), slip the fittings over the raised edges and into the slots of the Air Tool Rack. Allow the air tools to hang by the fittings.
