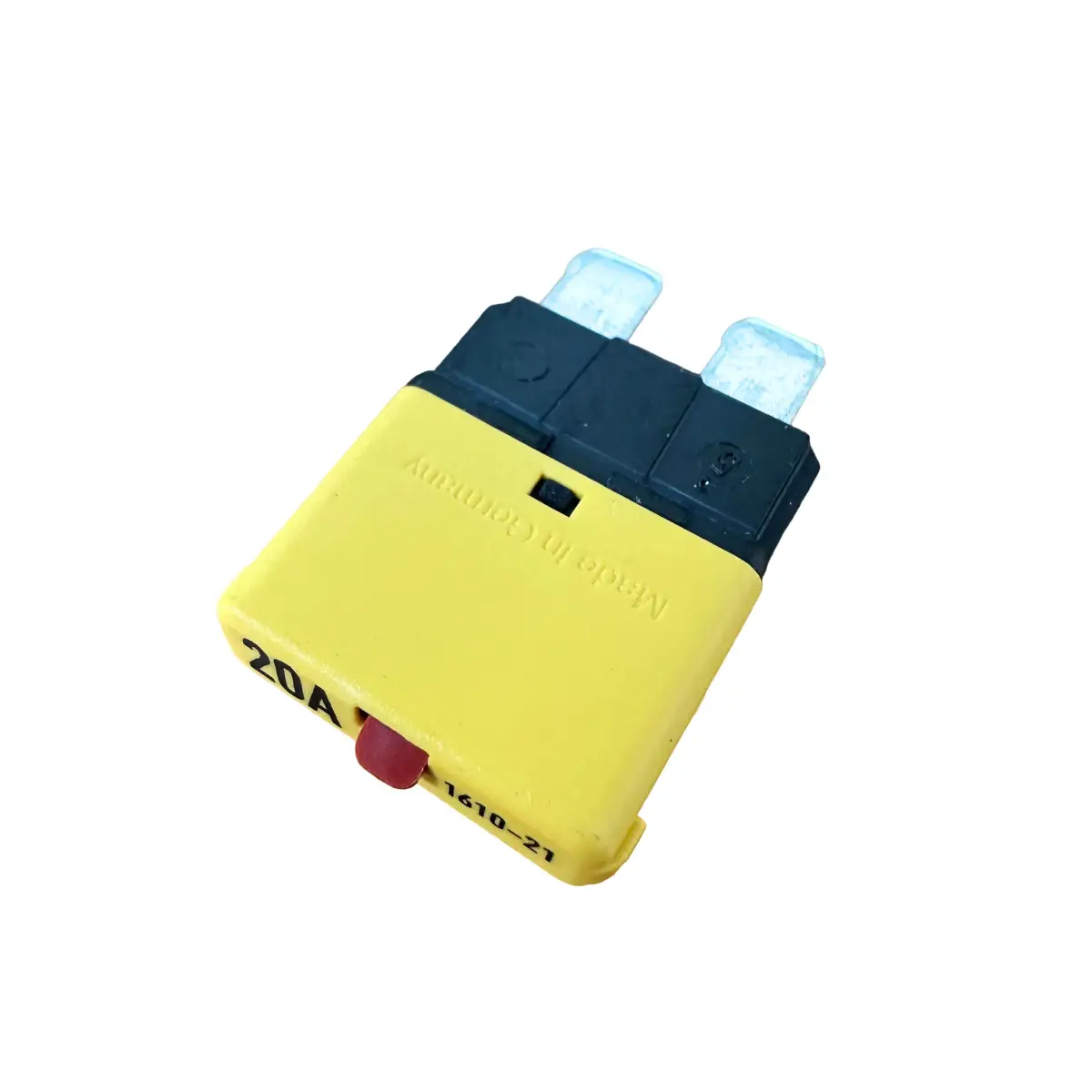

Blade Fuse Type Manual Reset Circuit Breaker – 20A, 12/24V

Circuit breaker, for 12/24 volt dc systems. Thermal bimetallic with manual re-set. Will replace standard blade fuses in many fuseholders and boxes.

• Type: Circuit breaker
• Voltage: 12/24 volt dc (max 32 volt dc)
• Voltage drop: < 150mV
• Current ratings: 20 amp
• Short circuit breaking capacity: 300 operations at ≤ 50 amp
  ≥3 operations at 150 amp
  ≥1 operation at 2000 amp
• Degree of protection (IP): Operating area IP30, terminal area IP00
• Vibration: 10g (57-500 Hz)
• Shock: 50g (11ms)
• Operating temperature: -40˚C to +85˚C
• Humidity: 95% RH
• Weight: 5g
• Dimensions: 20 x w 6 x h 38 (inc blades and trip extended)
